Network connection to multiple MFDs / chartplotters

The sonar module may be used with multiple Raymarine MFDs / chartplotters, via a network switch and RayNet network cables. The sonar image can then be shared between multiple displays on the same network (providing that all displays are running compatible software).

ConnectionsNetworkMultiple multifunction display connectionsNetworkMultiple multifunction display connections

Note

The connection panel on your Raymarine MFD / chartplotter may differ from that shown, depending on the hardware variant. However, the network connection method remains the same for all products featuring RayNet connectors.

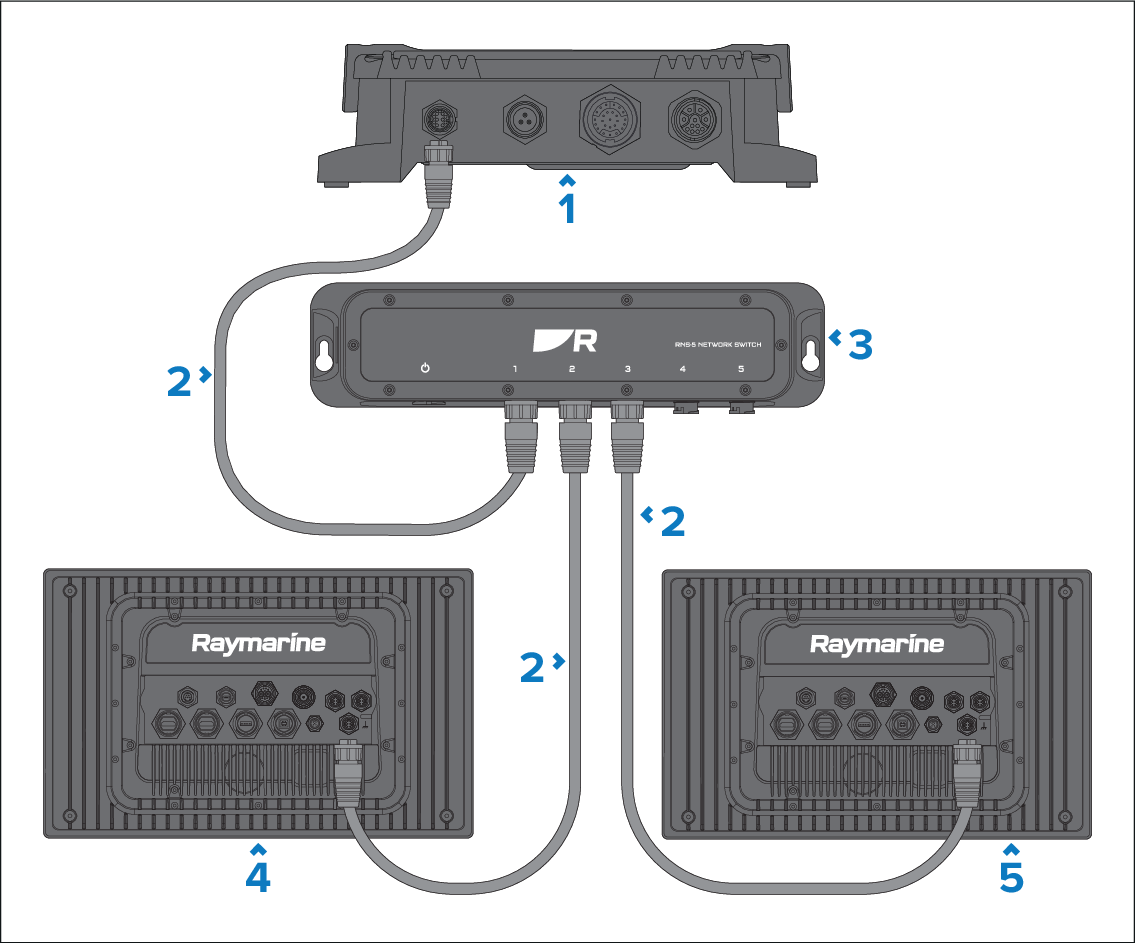

  1. Sonar module.

  2. RayNet (female) to RayNet (female) cable.

  3. Network switch.

  4. Compatible Raymarine MFD / chartplotter.

  5. Additional compatible Raymarine MFD / chartplotter.

Note

For a list of compatible Raymarine MFDs / chartplotters, refer to: Product and system overview
