MFD / chartplotter network connection

The RVM1600 must be connected to a compatible Raymarine MFD / chartplotter, via a RayNet network cable.

ConnectionsNetworkMFD / chartplotterNetworkMFD / chartplotter

Note

The connection panel on your MFD / chartplotter may differ from that shown, depending on the hardware variant. However, the network connection method remains the same for all products featuring RayNet connectors.

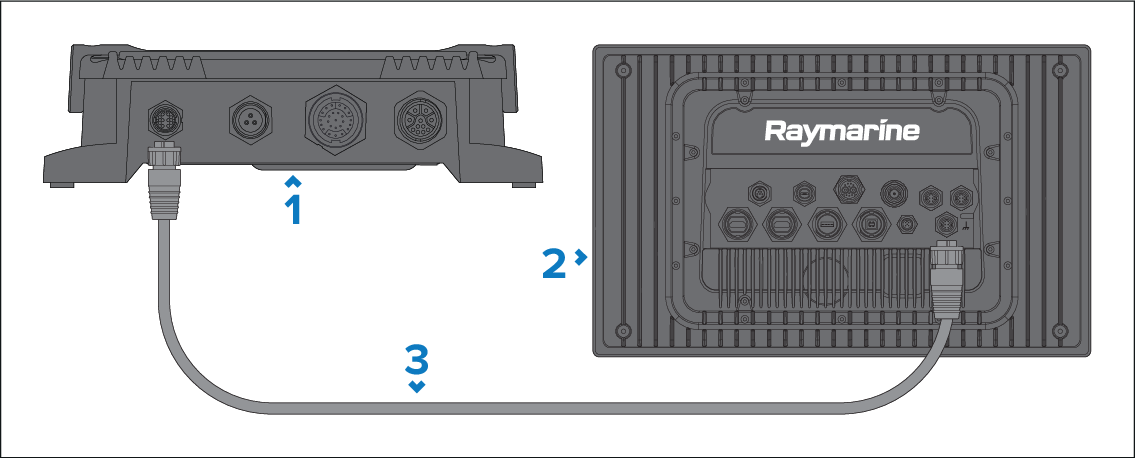

  1. Sonar module.

  2. Compatible Raymarine MFD / chartplotter.

  3. RayNet (female) to RayNet (female) cable.

Note

For a list of compatible Raymarine MFDs / chartplotters, refer to: Product and system overview
