DownVision® transducer connections

ConnectionsTransducersDownVisionConnectionsTransducersSideVision

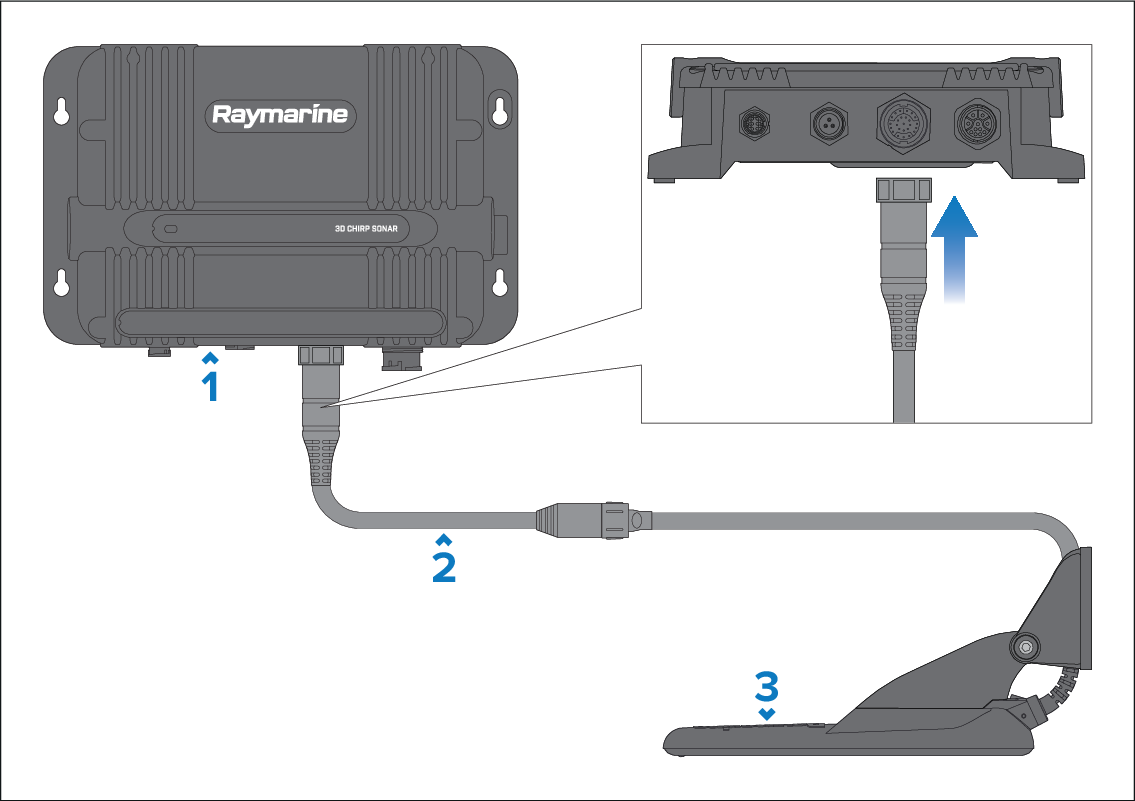

  1. Sonar module.

  2. 25-pin to 9-pin adapter cable (A80490).

  3. DownVision® transducer.

Note

For a list of compatible transducers, refer to the following section: Compatible transducers

For a list of applicable transducer extension cables, refer to the following section: Spares and accessories
