Split-pair RealVision® 3D / RealVision® Max 3D transducer connections

ConnectionsTransducersSplit-pair RealVision™ Max 3D / RealVision™ 3D

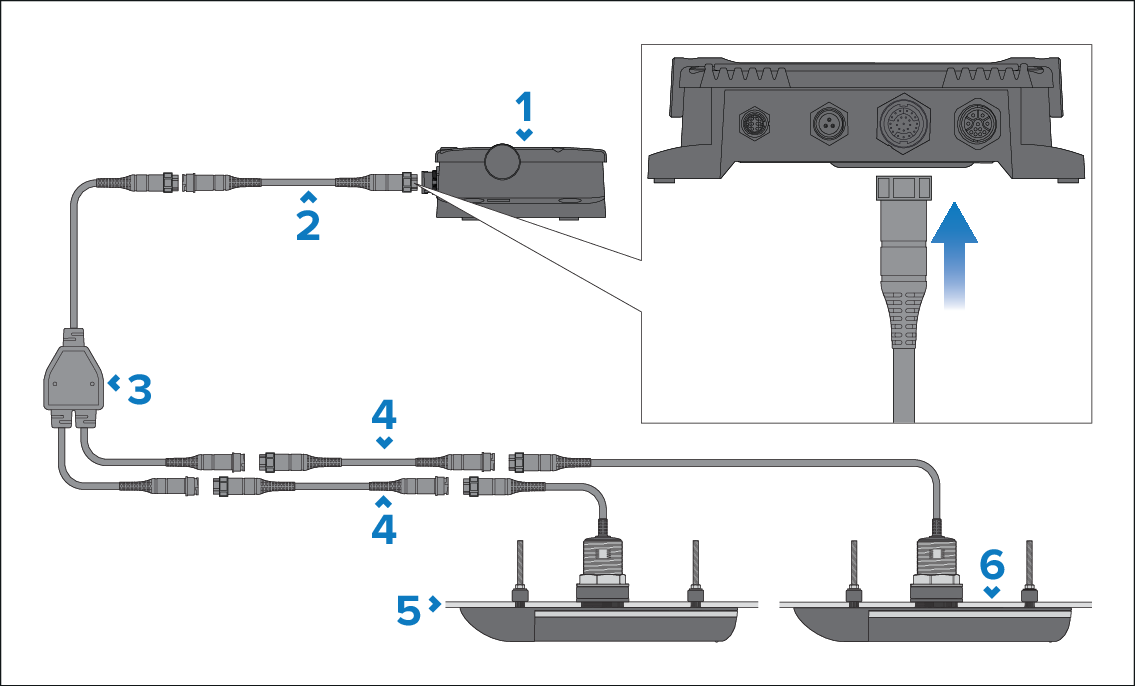

  1. Sonar module.

  2. 8 m (26.2 ft) extension cable (supplied).

  3. ConnectionY cable‘Y’ cable (supplied).

  4. ConnectionExtension cablesOptional extension cables can be fitted between the transducer and ‘Y’ cable if required, or between supplied extension cable and MFD or sonar module.

  5. Transducer, e.g.: RVM-412P (Port).

  6. Transducer, e.g.: RVM-412S (Starboard).

Note

For a list of compatible transducers, refer to the following section: Compatible transducers

For a list of applicable transducer extension cables, refer to the following section: Spares and accessories
