CPT-S-Series conical beam transducer connections

ConnectionsTransducersCHIRP conical beam

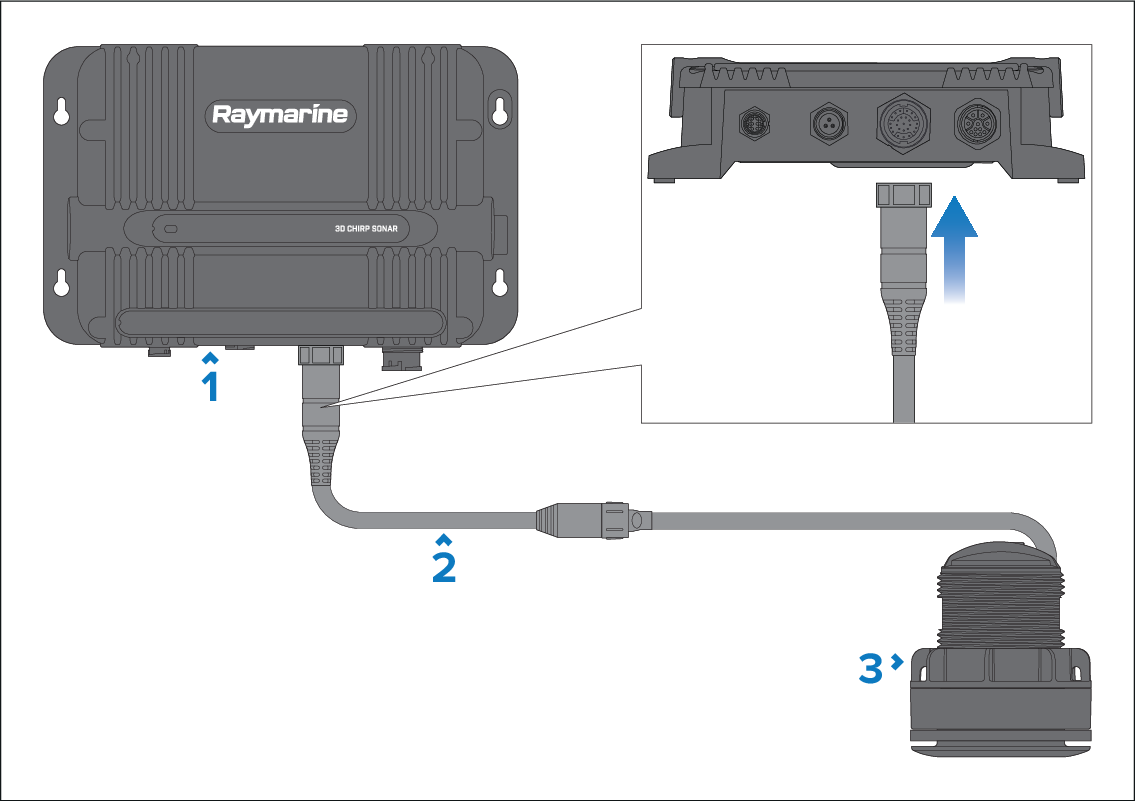

  1. Sonar module.

  2. 25-pin to 9-pin adapter cable (A80490).

  3. CPT-S-Series CHIRP conical beam transducer.

Note

For a list of compatible transducers, refer to the following section: Compatible transducers

For a list of applicable transducer extension cables, refer to the following section: Spares and accessories
