Transducer pod connections

Analog transducer data can be transmitted to the display using legacy transducer pods.

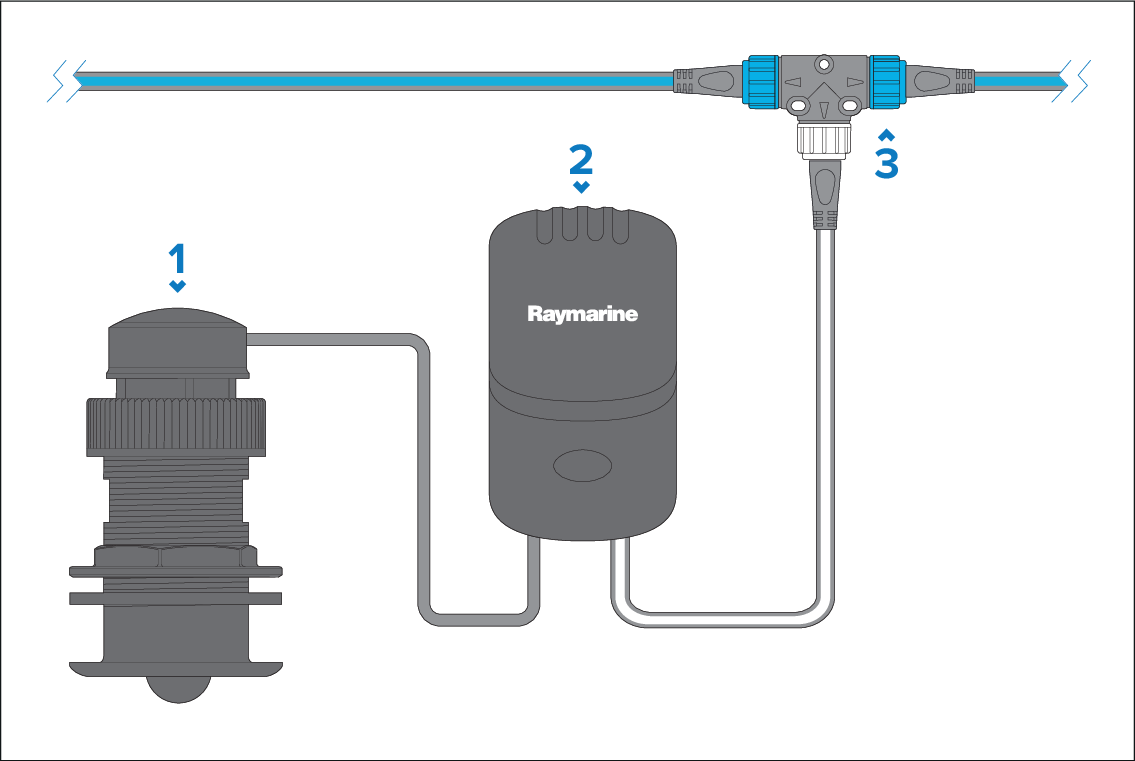

Transducer pod

  1. Analog transducer (e.g.: speed and temperature transducer)

  2. Transducer pod (e.g.: Speed pod)

  3. SeaTalk NG T-Piece connector (A06028)

Connect the transducer to the pod, the pod terminals are color-coded, ensure that each wire is connected to the corresponding terminal.

Connect the pod to the SeaTalk NG backbone using a SeaTalk NG to bare wire spur cable (e.g.: A06043) and a T-piece connector. Pods must be located no farther than 400 mm (15.75 in.) from the connection point on the backbone.
