Connecting legacy transducer pods to SeaTalk NG

Legacy transducer pods use color coded, spring retention connectors for the SeaTalk NG connection. A bare ended SeaTalk NG spur cable (e.g.: A06043) is required.

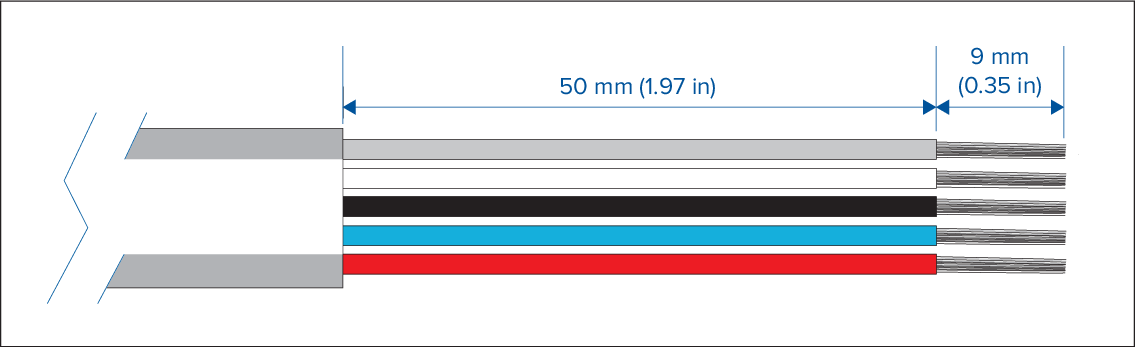

1. SeaTalk NGLegacy transducer pod connectionPrepare the bare ended wires of the SeaTalk NG spur cable as shown below:

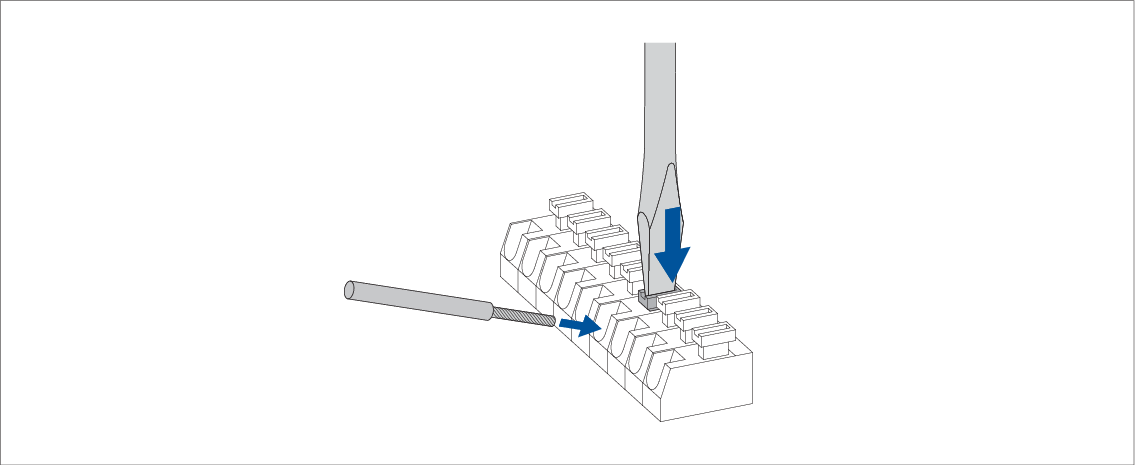

2. Fit each wire into the corresponding color coded connector. To fit the wires use a flat blade screw driver to push in the spring retention clip and hold it in the open position, then slide the wire fully into the connector and release the spring retention clip.
