Connecting transducers to legacy transducer pods

Follow the steps below to connect the transducer wires to the transducer pod.

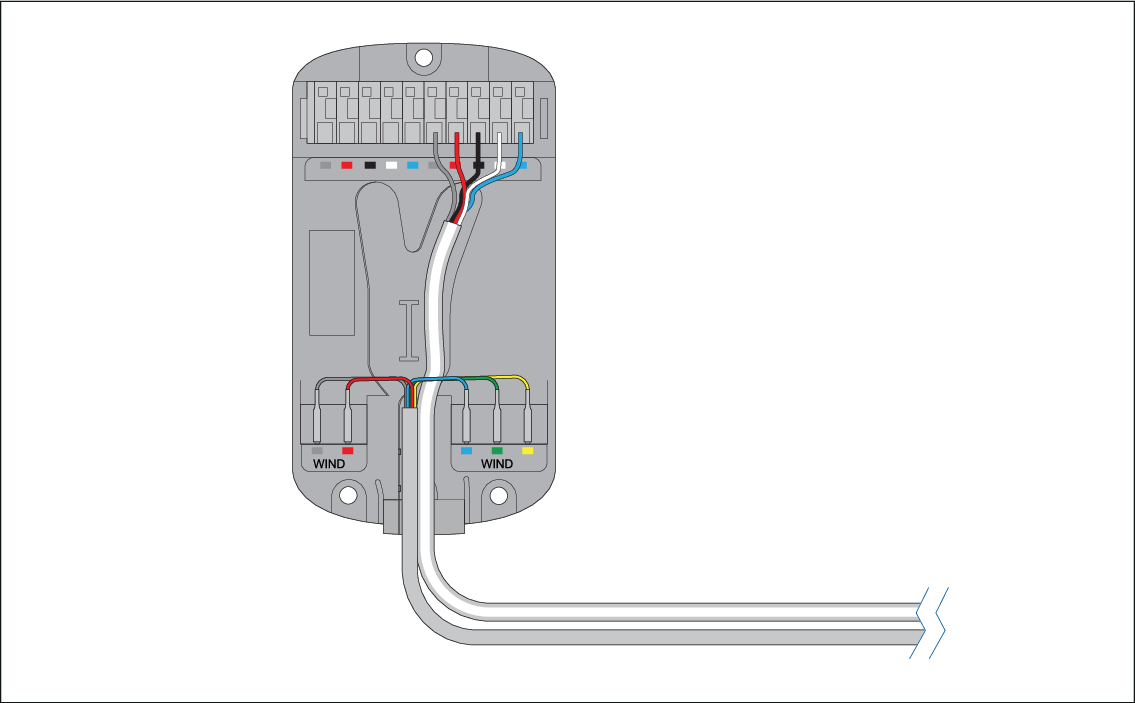

Figure 1. Example — Wind pod connection

  1. Fit each transducer wire to the relevant color coded connector on the transducer pod.
  2. Ensure each spade terminal is pushed fully on to the pod connector.
