Parts supplied — Axiom+ 9 and Axiom+ 12

The parts listed are supplied with the following product numbers: E70636, E70637, E70638 and E70639.

Parts suppliedAxiom+ 9Axiom+ 12

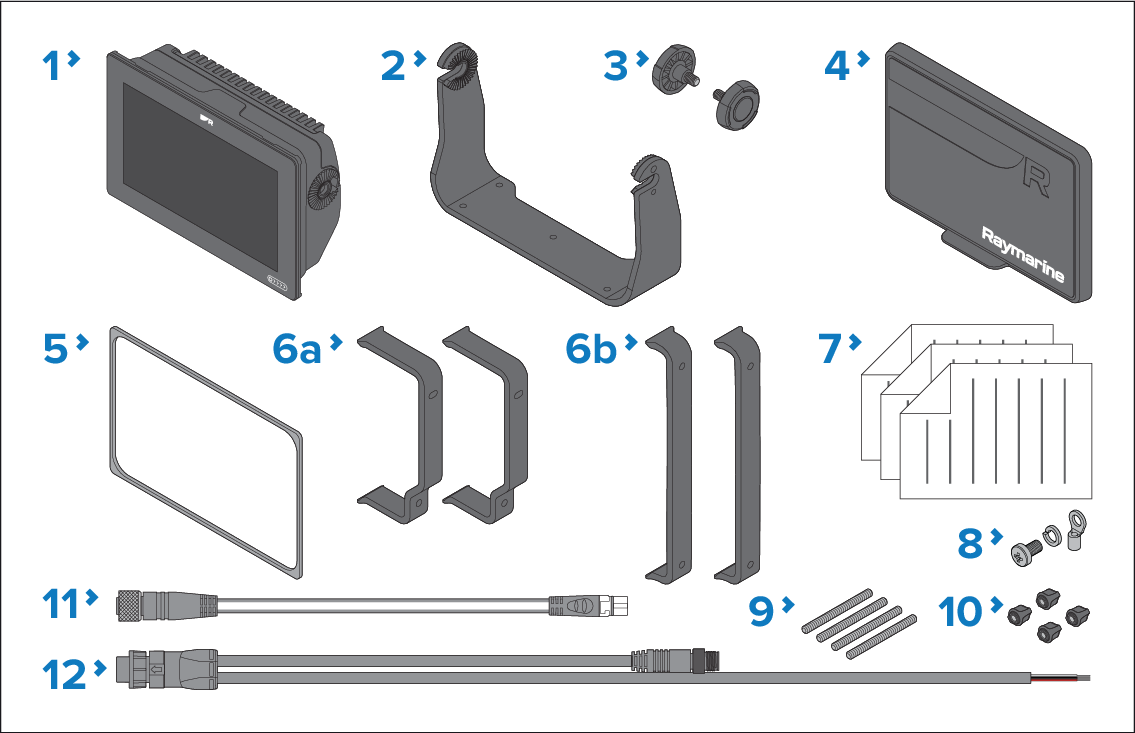

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

  1. MFD

  2. (1) Trunnion mounting bracket

  3. Trunnion knobs x 2

  4. Suncover

  5. Panel mount gasket for surface/flush mounting

  6. Rear mounting brackets:

    1. supplied with 9” MFD

    2. supplied with 12” MFD

  7. Documentation pack

  8. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)

  9. M5x58 Threaded studs x 4

  10. M5 Thumb nuts x 4

  11. DeviceNet to SeaTalk NG adaptor cable 120 mm (4.7 in)

  12. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

E70637–03 is also supplied with a RealVision 3D RV-100 transducer and associated fittings.

E70639–03 is also supplied with a RealVision 3D RV-100 transducer and associated fittings.

Note

(1) Fixings to secure the trunnion bracket to a mounting surface are not provided. 5 x self-tapping screws are required. The screws should be suitable for the mounting surface material and the 5.75 mm (0.23 in) diameter mounting holes in the trunnion bracket.
