Parts supplied — Axiom+ 9 (DISP) and Axiom+ 12 (DISP)

The parts listed are supplied with the following product numbers: E70636–DISP, E70637–DISP, E70638–DISP and E70639–DISP.

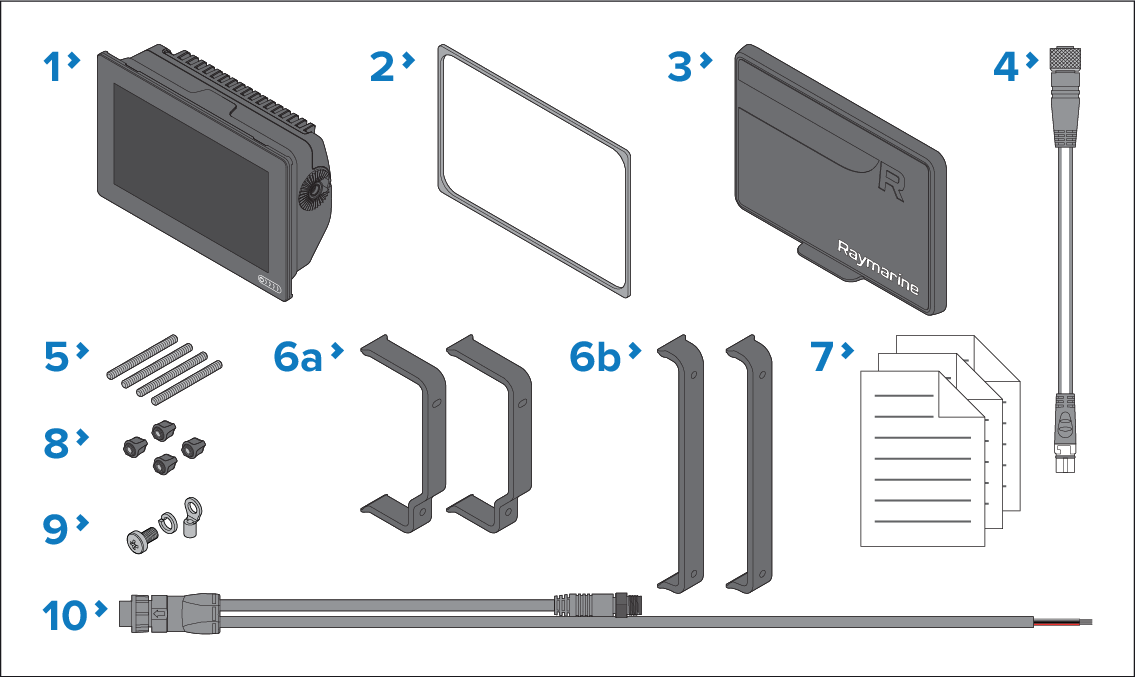

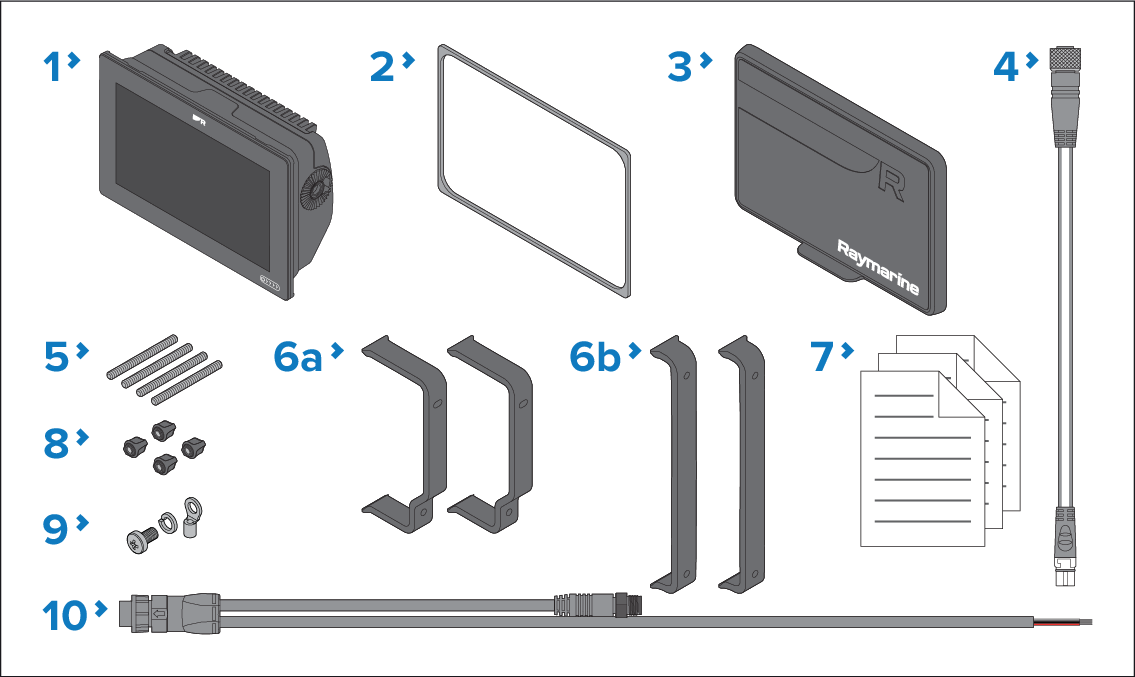

Parts suppliedAxiom+ 9 (DISP)Axiom+ 12 (DISP)

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

  1. MFD

  2. Panel mount gasket for surface/flush mounting

  3. Suncover

  4. DeviceNet to SeaTalk NG adaptor cable 120 mm (4.7 in)

  5. M5x58 Threaded studs x 4

  6. Rear mounting brackets:

    1. supplied with 9” MFD

    2. supplied with 12” MFD

  7. Documentation pack

  8. M5 Thumb nuts x 4

  9. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)

  10. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
