Parts Supplied — Axiom+ 7 (DISP)

The parts listed are supplied with the following product numbers: E70634–DISP and E70635–DISP.

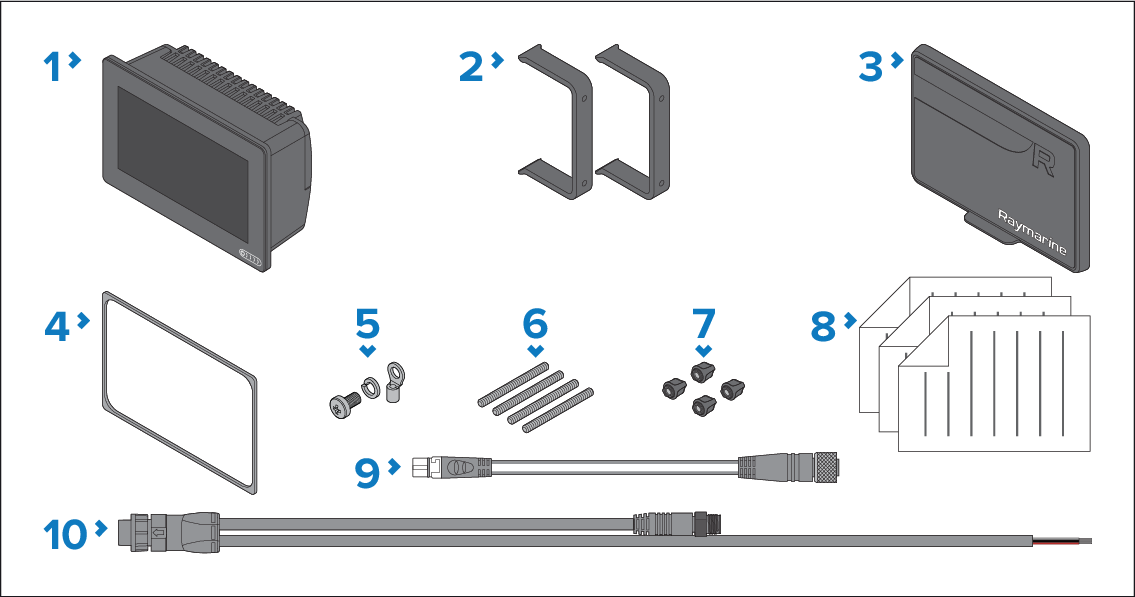

Parts suppliedAxiom+ 7 (DISP)

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

  1. MFD

  2. Rear mount brackets x 2

  3. Suncover — Surface mount

  4. Panel mount gasket for surface/flush mounting

  5. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)

  6. M5x58 Threaded studs x 4

  7. M5 Thumb nuts x 4

  8. Documentation pack

  9. DeviceNet to SeaTalk NG™ adaptor cable 120 mm (4.7 in)

  10. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
