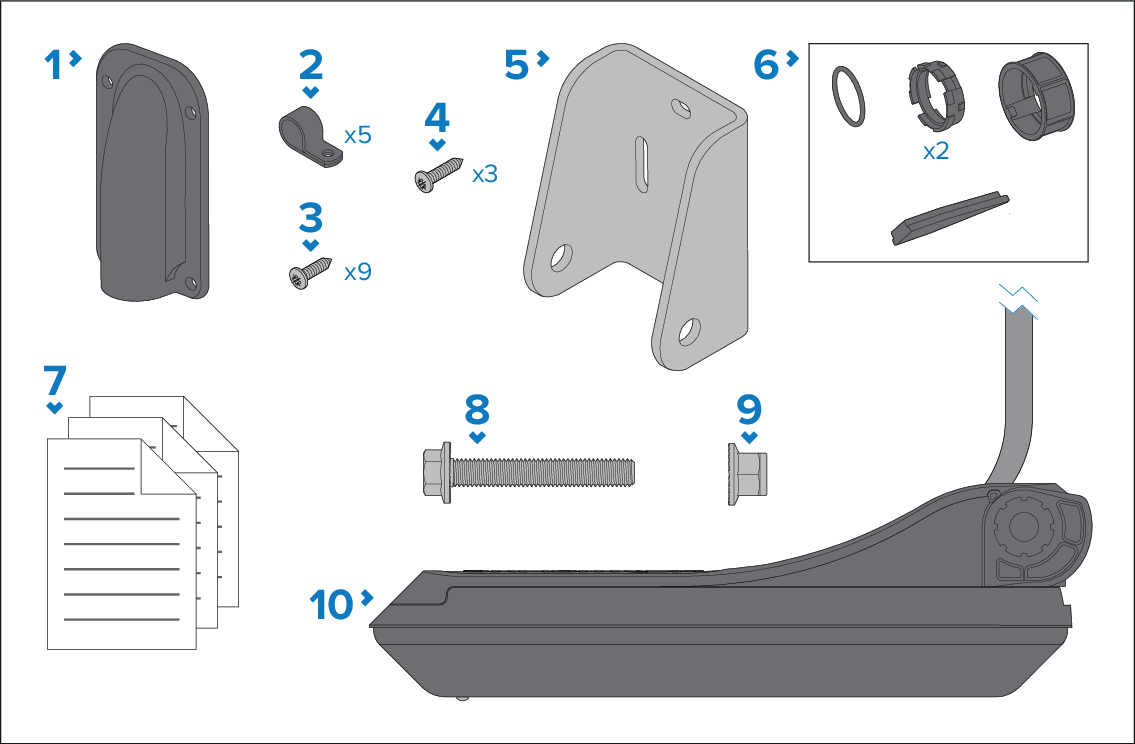

Additional parts supplied

The following additional parts are supplied when ordering part numbers: E70635-03, E70637-03 and E70639-03

Parts suppliedBox contentsWhat’s in the box

Description

1

Escutcheon plate

2

5 x Cable clips

3

9 x Self-tapper screws (3.9x13) (4 x for escutcheon, and 5 x for cable clips)

4

3 x Self-tapper screws (4.2x18) (for transducer mounting bracket installation)

5

Transducer mounting bracket

6

Cable connector kit, consisting of:

  • O-Ring

  • Split ring x 2 (1 x spare)

  • Locking collar

  • Split-ring fitting tool

7

Documentation pack

8

M10 x 65 serrated bolt

9

M10 serrated nylock nut

10

Transducer (including fitted 8 m / 26.2 ft cable)
