Parts supplied — Axiom+ 7

The parts listed are supplied with the following product numbers: E70634 and E70635.

Parts suppliedAxiom+ 7

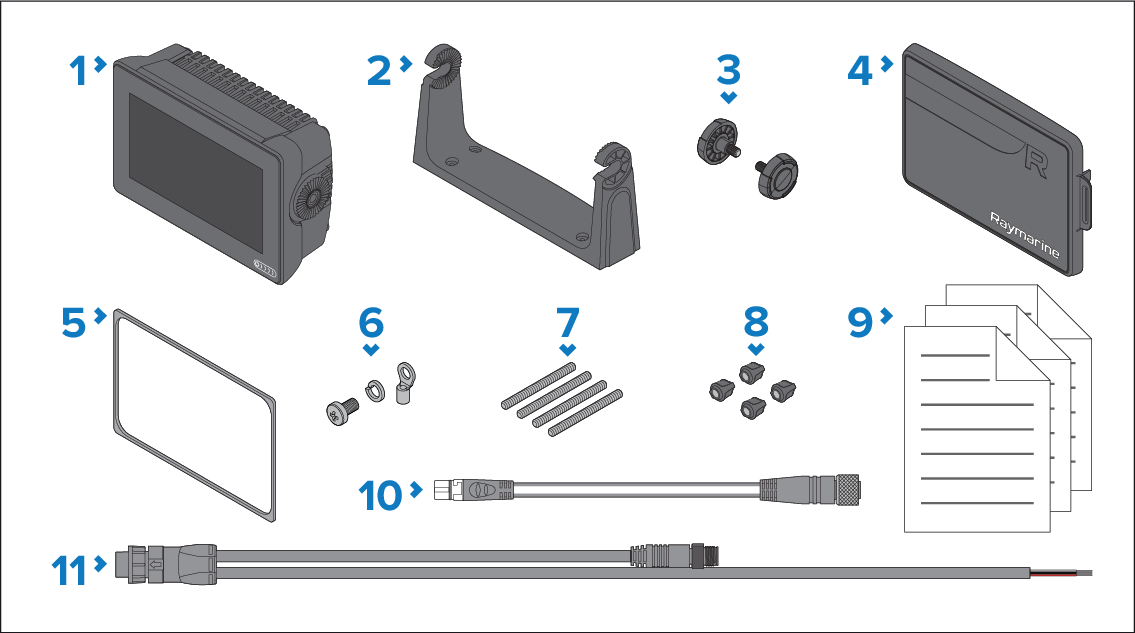

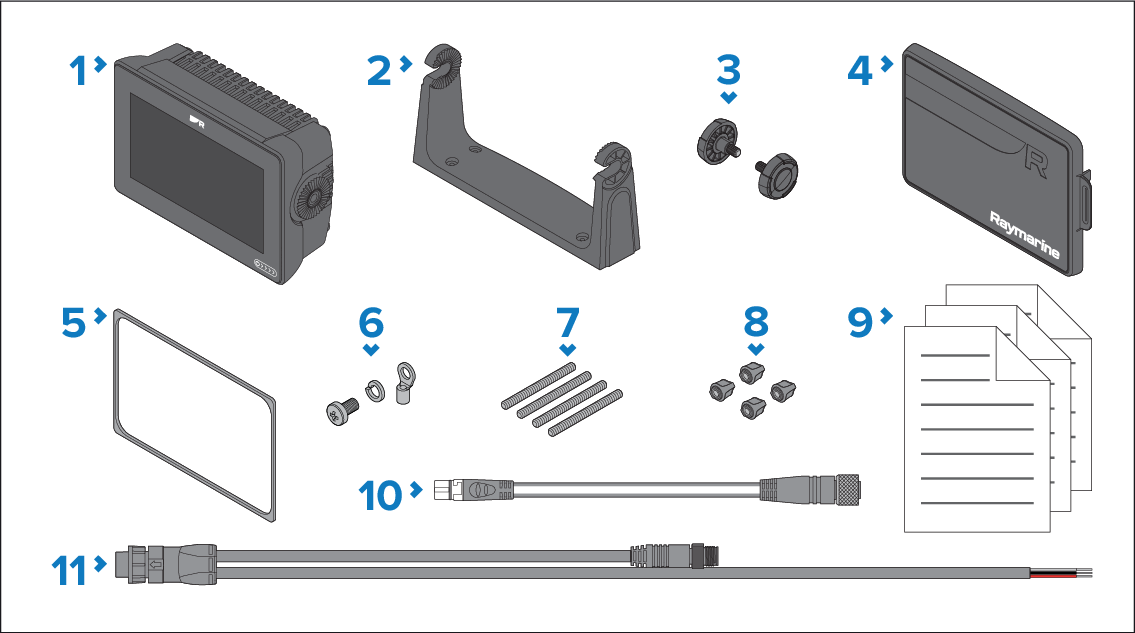

Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference.

  1. MFD (supplied with Trunnion adaptor fitted)

  2. (1) Trunnion mounting bracket

  3. Trunnion knobs x 2

  4. Suncover — Trunnion mount

  5. Panel mount gasket for surface/flush mounting

  6. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)

  7. M5x58 Threaded studs x 4

  8. M5 Thumb nuts x 4

  9. Documentation pack

  10. DeviceNet to SeaTalk NG™ adaptor cable 120 mm (4.7 in)

  11. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

E70635–03 is also supplied with a RealVision 3D RV-100 transducer and associated fittings.

Note

(1) Fixings to secure the trunnion bracket to a mounting surface are not provided. 4 x self-tapping screws are required. The screws should be suitable for the mounting surface material and the 4.20 mm (0.17 in) diameter mounting holes in the trunnion bracket.
