Axiom+ 9 and 12 trunnion mount dimensions

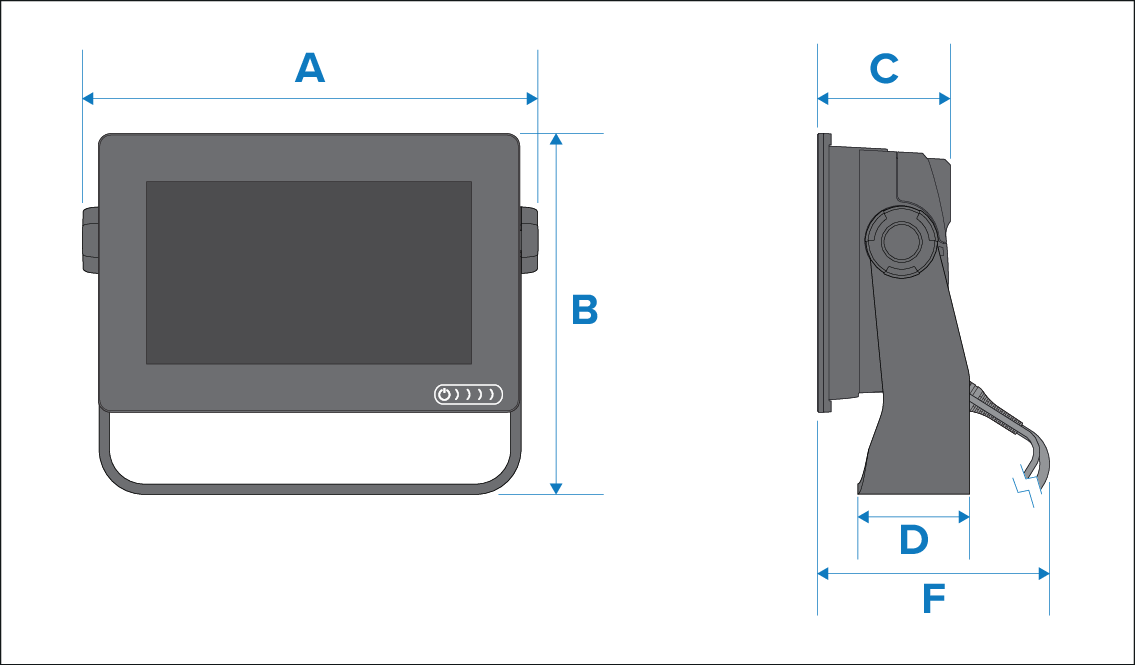

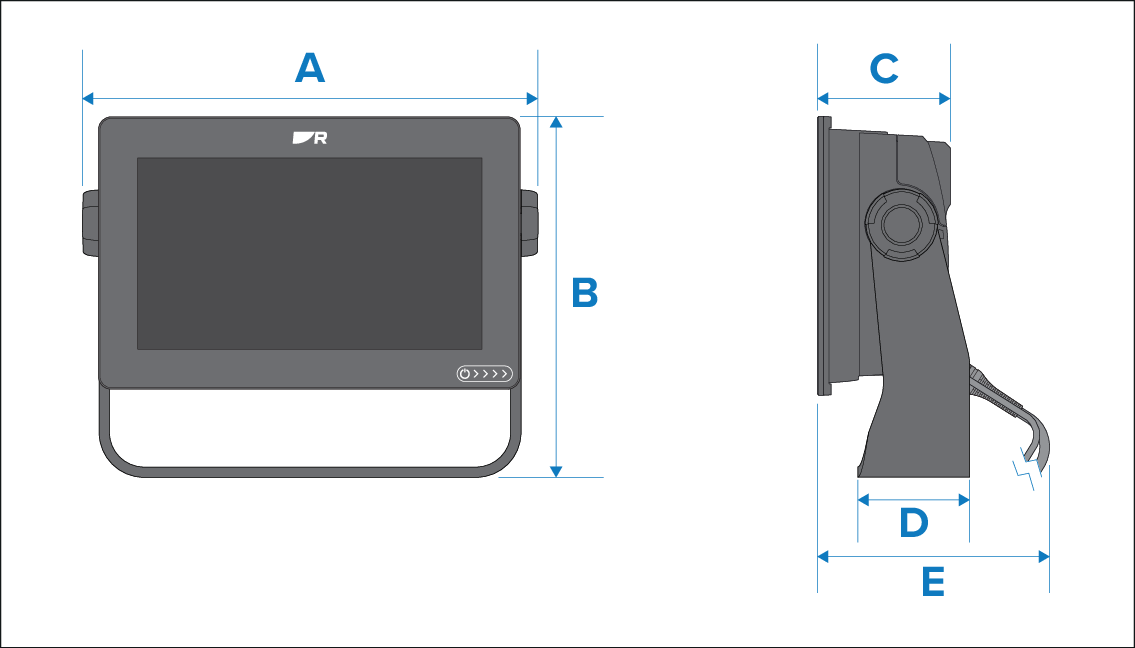

DimensionsAxiom+ 9 trunnion mountAxiom+ 12 trunnion mount
| DimensionsSpecificationDimensions | Axiom+ 9 |
Axiom+ 12 |
|---|---|---|
A |
265.03 mm (10.43 in) |
314 mm (12.36 in) |
B |
187.81 mm (7.39 in) |
226.72 mm (8.93 in) |
C |
76.71 mm (3.02 in) |
76.2 mm (3 in) |
D |
65 mm (2.56 in) |
65 mm (2.56 in) |
E |
|
|
