Axiom+ 9 and 12 surface and flush mount dimensions
Note

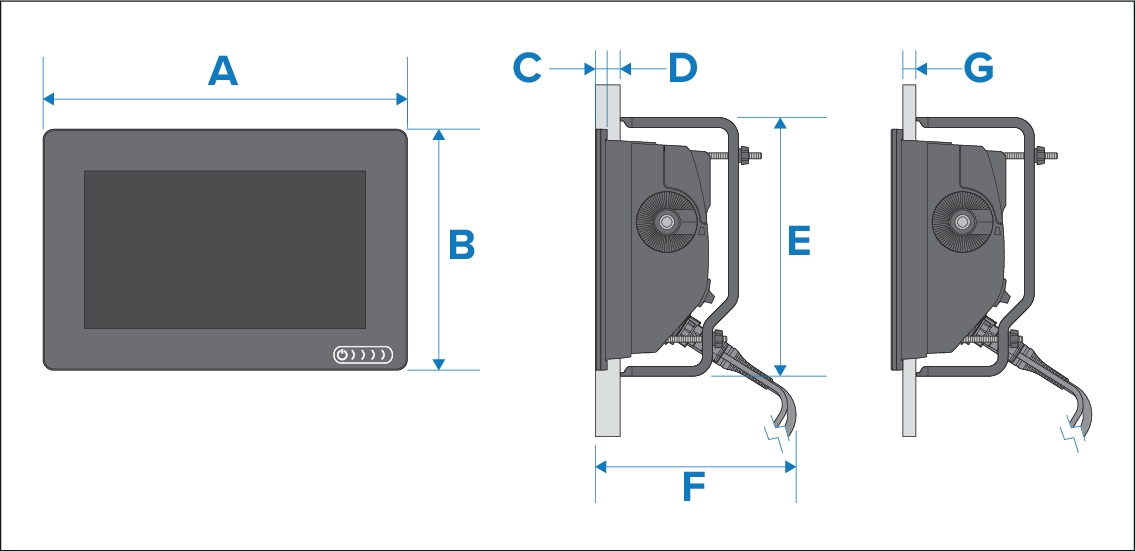

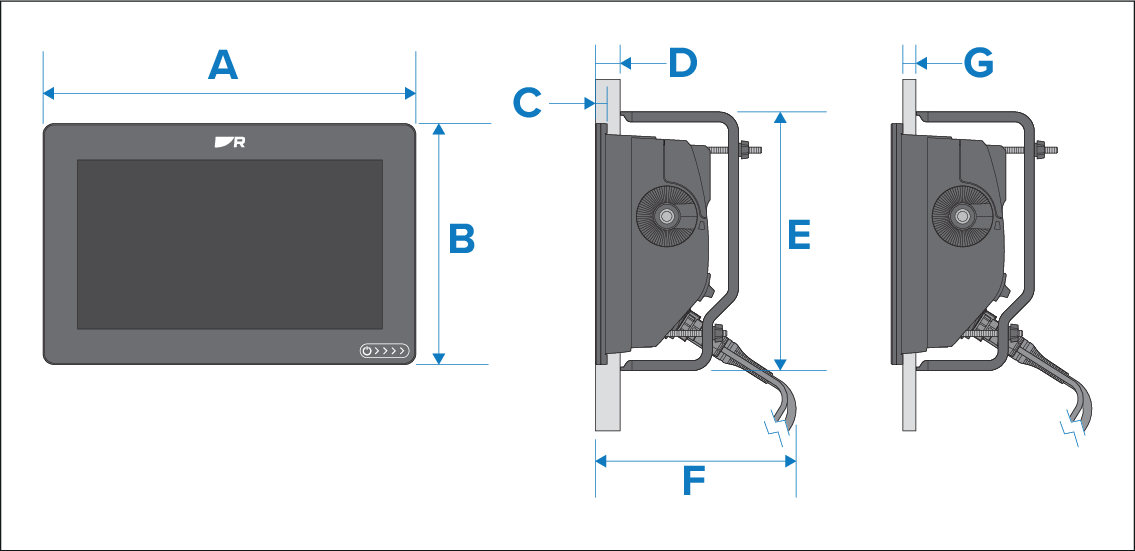

The appearance of the brackets that are supplied with your display may differ from what is shown in the illustration below.
DimensionsAxiom+ 9 surface mountAxiom+ 9 flush mountAxiom+ 12 surface mountAxiom+ 12 flush mount
| DimensionsSpecificationDimensions | Axiom+ 9 |
Axiom+ 12 |
|---|---|---|
A |
244.08 mm (9.64 in) |
314 mm (12.36 in) |
B |
157.78 mm (6.21 in) |
217 mm (8.54 in) |
C |
8 mm (0.31 in) |
8 mm (0.31 in) |
D |
27.05 mm (1.06 in) Maximum |
27.05 mm (1.06 in) Maximum |
E |
157 mm 6.18 in) |
222 mm (8.74 in) |
F |
178 mm (7.01 in) |
178 mm (7.01 in) |
G |
19.05 mm (0.75 in) Maximum |
19.05 mm (0.75 in) Maximum |
