Element HV legacy transducer connection
When connecting a legacy transducer you must use the correct adaptor cable and, where required an extension cable that is compatible with the legacy transducer.

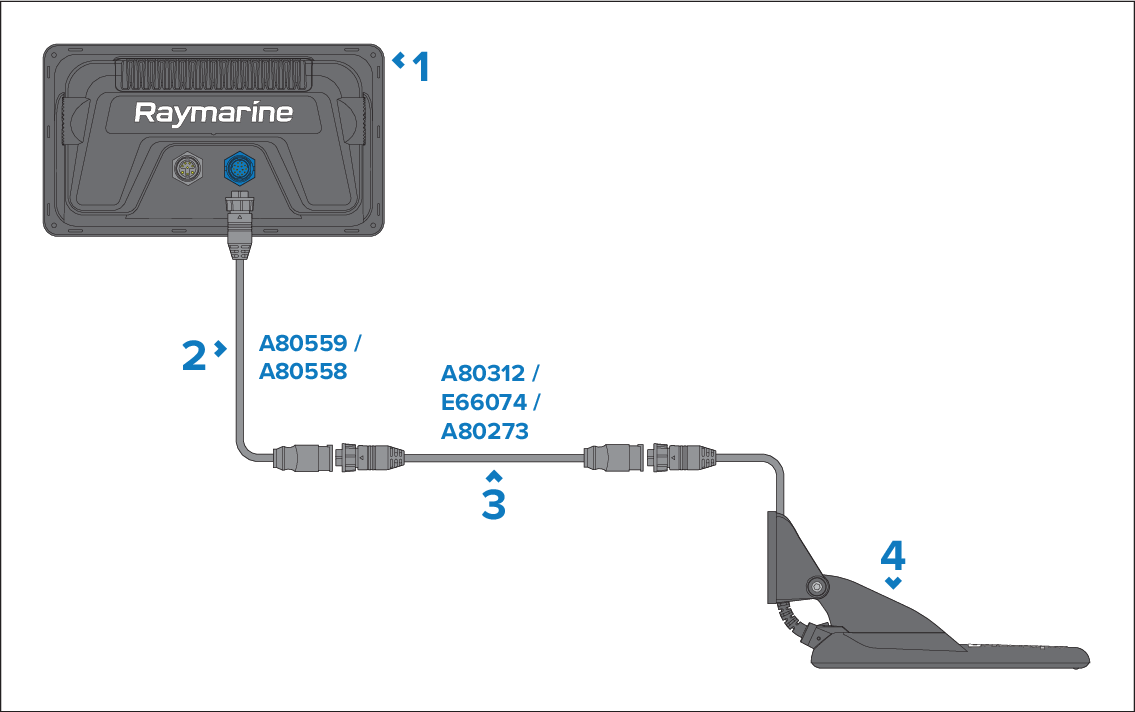

Element™ HV display — Connects to adaptor cable..
Adaptor cable (i.e.: A80559 or A80558) — Connects to the display and extension cable or transducer.
Extension cable (i.e.: A80312, E66074 or A80273) — Connects between transducer and adaptor cable.
Example legacy transducer — Connects to adaptor cable or extension cable.
