Element HV transducer connection

HV-series transducers can be connected directly to Element™ HV displays.

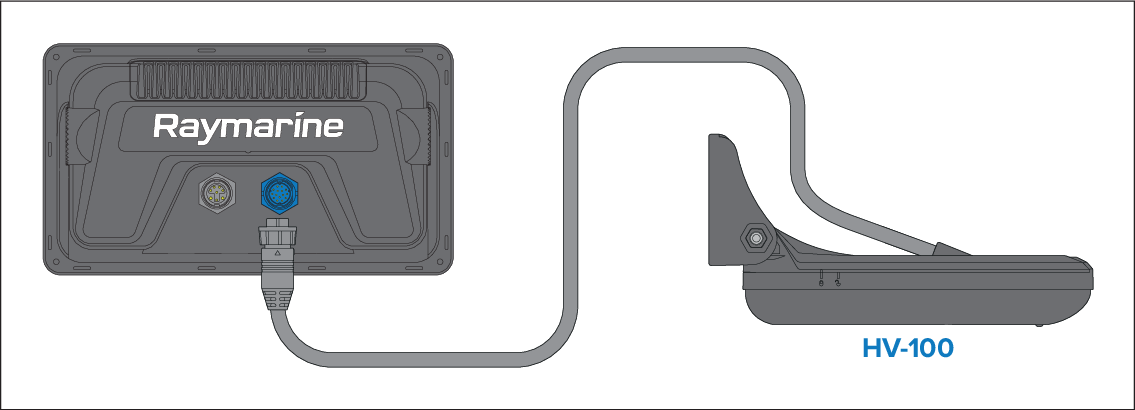

Figure 1. HV-100 connection

Figure 2. HV-300THP (all-in-one) connection

Figure 3. HV-300THP-P and HV-300THP-S (split pair) connection

  1. Extension cable (supplied with split pair sets of transducers).

  2. Y-cable (supplied with split pair sets of transducers).

You can extend the length of transducer cables using a transducer extension cable.
