Network connection — wireless (Wi-Fi)

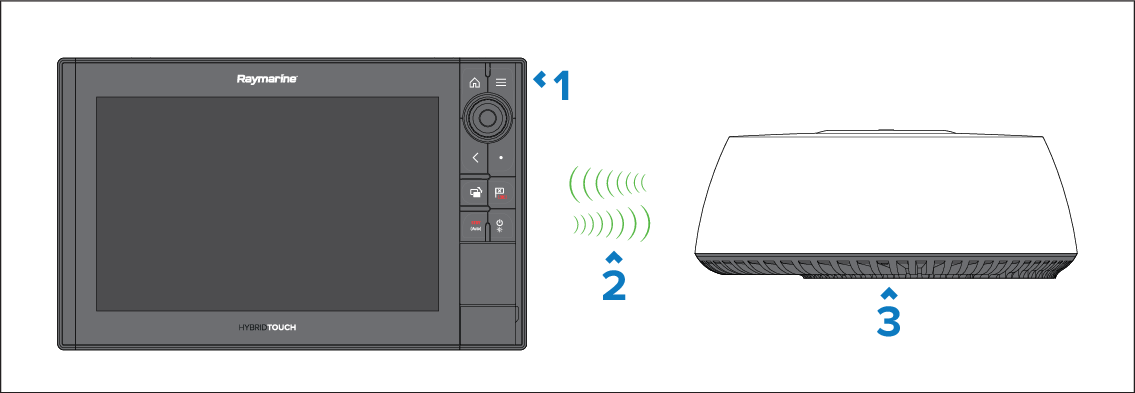

Radar scanner connected to an MFD / chartplotter via Wi-Fi.
Note
Power connections are not shown in the above illustration. The MFD/chartplotter and Radar scanner each require their own dedicated power supplies.
| Network connectionsWi-Fi | Description |
|---|---|
1 |
Compatible Raymarine MFD / chartplotter with Wi-Fi capability. |
2 |
Wi-Fi datalink. |
3 |
Quantum-Series Radar scanner with Wi-Fi capability. |
Note
Refer to your MFD / chartplotter documentation and the following section for further information about setting up the Wi-Fi connection between your MFD / chartplotter and a Quantum-Series Radar scanner: System checks and troubleshooting
