Network connection — wired (single display)

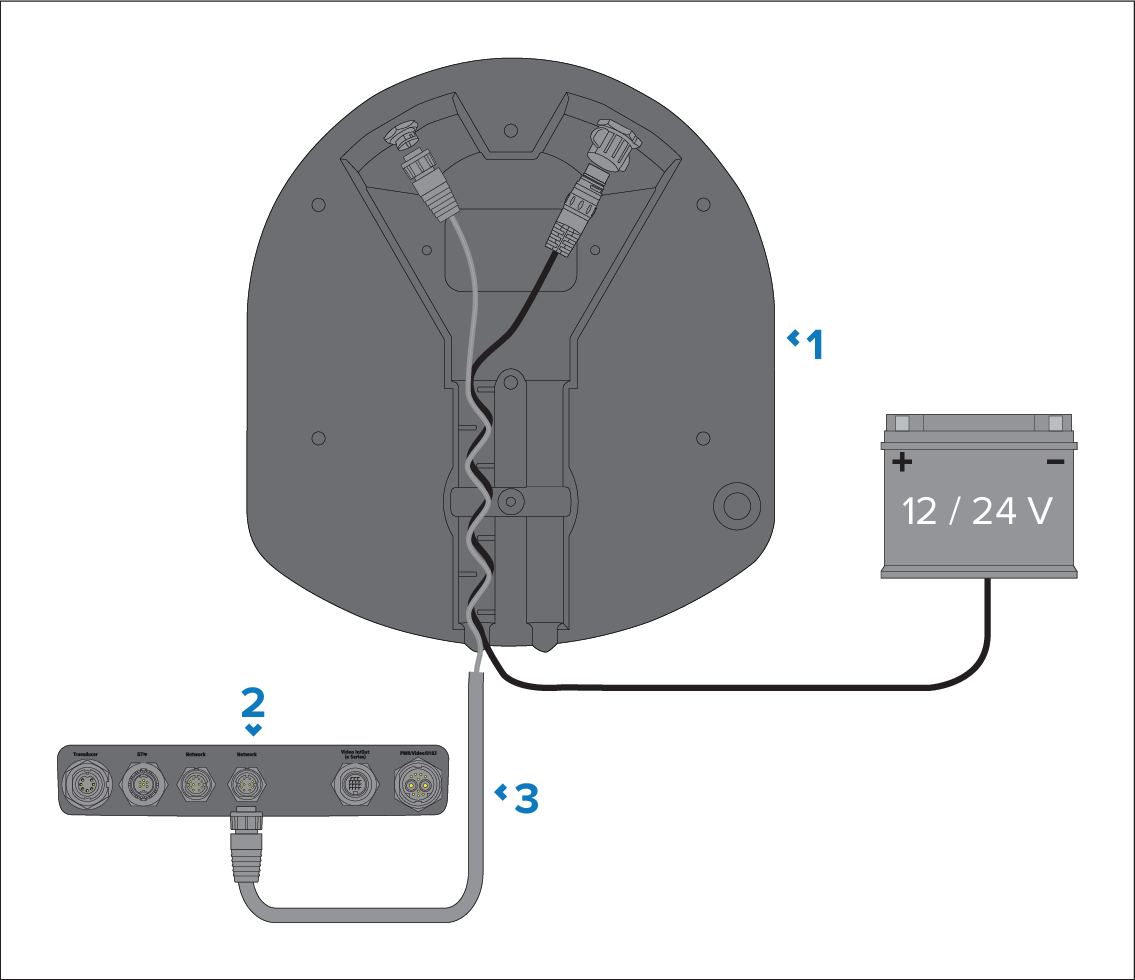

Radar scanner connected to a multifunction display using a RayNet cable.
| Network connectionsWired (RayNet) | Description |
|---|---|
1 |
Quantum™ Radome (for clarity, only the connections area of the underside of the unit is shown here). |
2 |
Connector panel of compatible Raymarine® MFD / chartplotter (for clarity, only the connections area of the unit is shown here). |
3 |
RayNet data cable. |
