Network connection — wired (multiple displays)
A Raymarine® network switch can be used to connect the Radar scanner to more than one MFD / chartplotter at the same time.

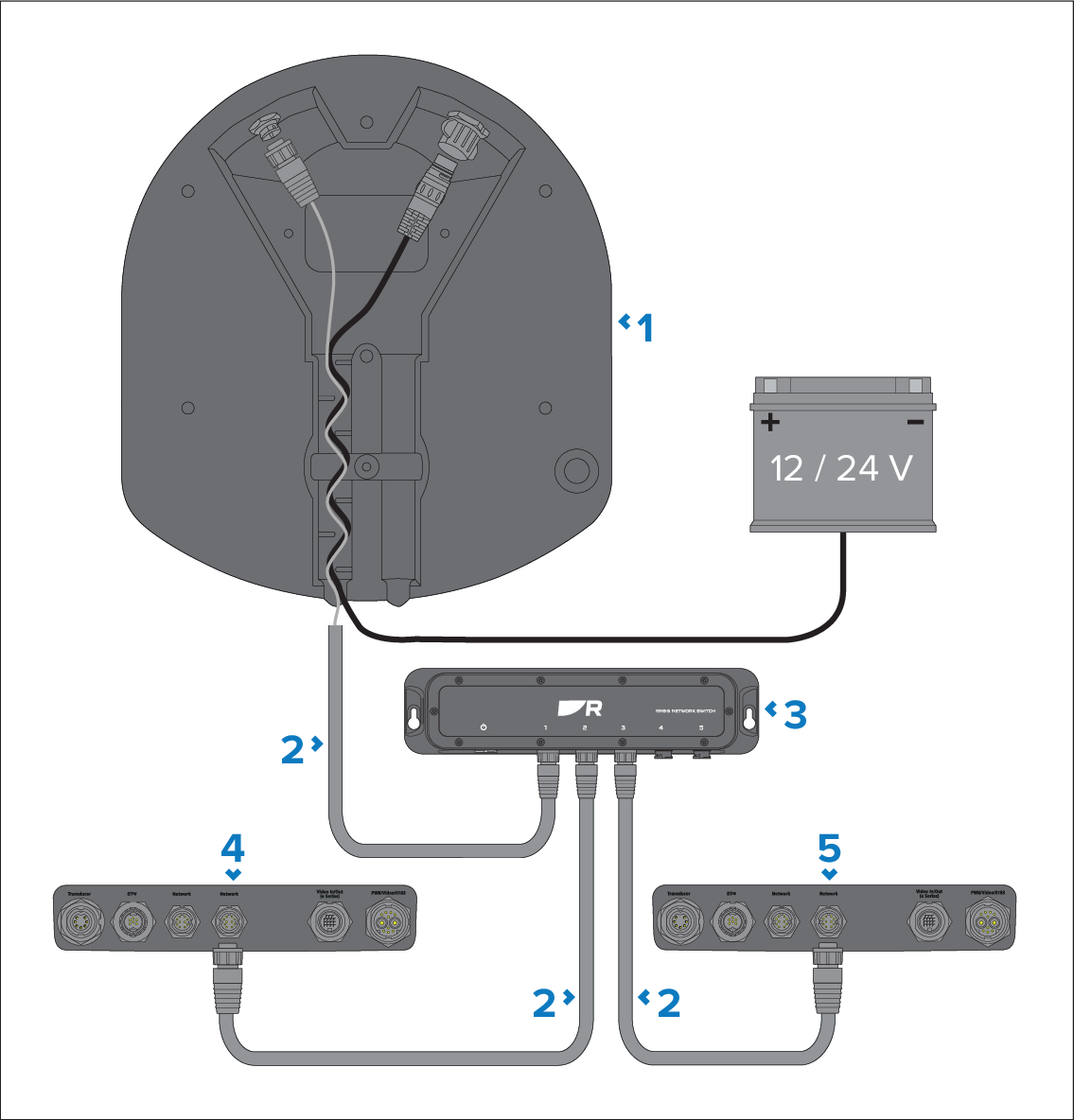

| Network connectionsNetwork switch | Description |
|---|---|
1 |
Quantum™ radome (for clarity, only the connections area of the underside of the unit is shown here). |
2 |
RayNet cable. |
3 |
RayNet network switch. |
4 |
Connector panel of compatible Raymarine® MFD / chartplotter (for clarity, only the connections area of the unit is shown here). |
5 |
Connector panel of additional compatible Raymarine® MFD / chartplotter (for clarity, only the connections area of the unit is shown here). |
