Connections overview
Use the following information to help you identify
the connections on your product.
| Connector | Connection |
|---|---|
 |
Connects to a RayNet network or device. Not required if connecting using Wi-Fi. For further information on the suitable cables, refer to the following section: Spares and accessories |
 |

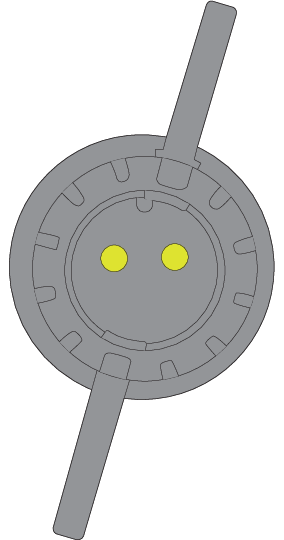

Connects to a 12 V / 24 V power supply. A suitable power cable is supplied with your product. |

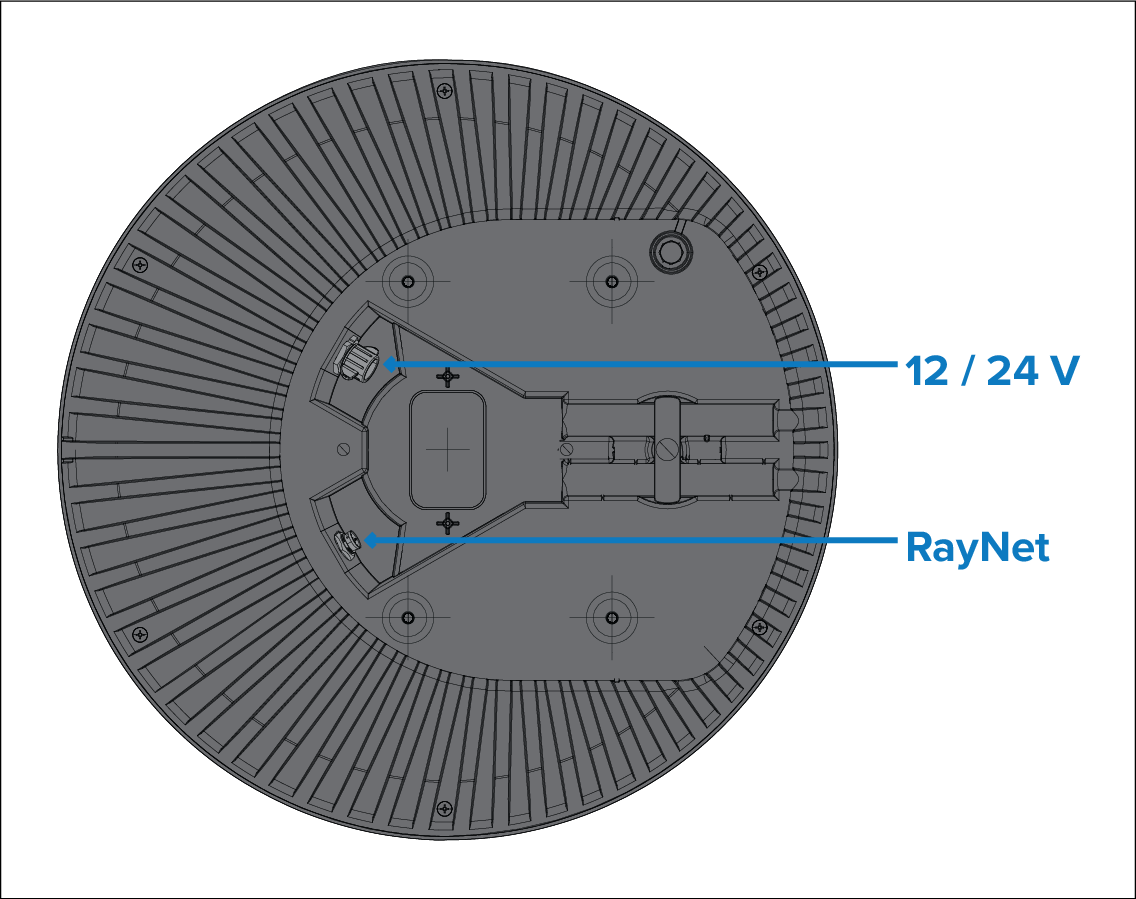

The power and data connections are located on the underside of the scanner unit, as shown in the following illustration.
