Pedestal power connections

The Radar scanner must be powered via the supplied VCM100 Converter Module.

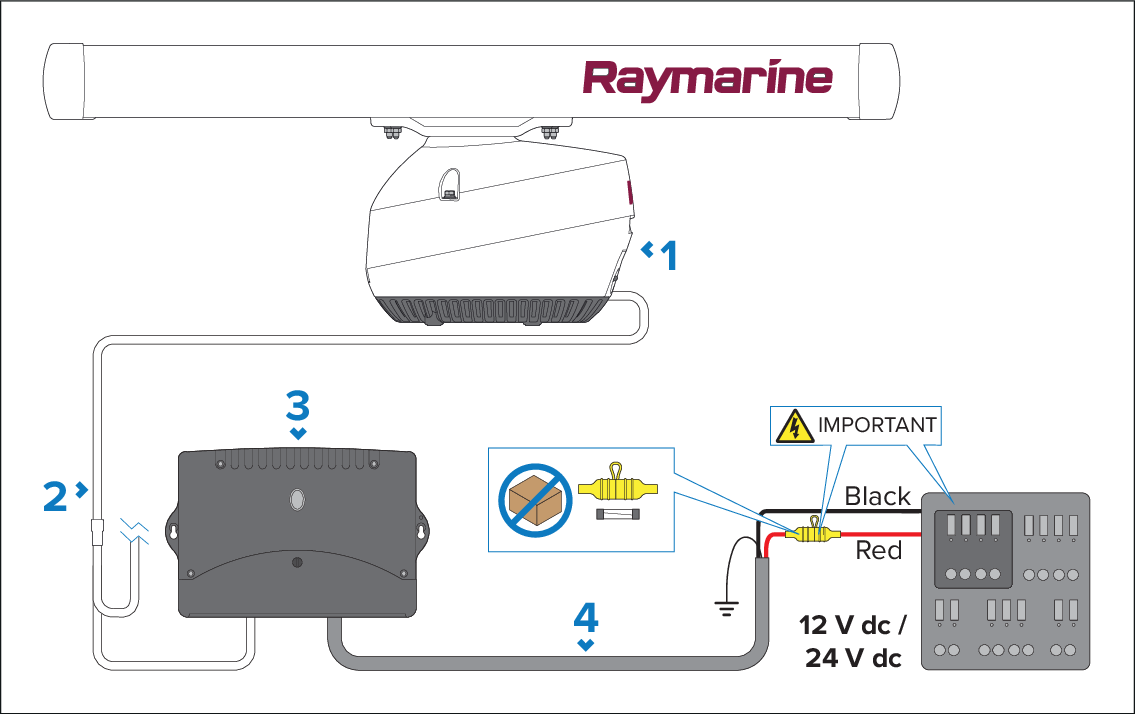

Power connectionConnectionsPowerPedestalPower connection

	Description
1	Radar scanner, supplied.
2	Power component of Radar to “RayNet & power cable” cable, supplied.
3	VCM100 power converter, supplied.
4	VCM100 power cable (not supplied).
5	Vessel power supply.

The Radar scanner is intended for use on vessel DC power systems operating at 12 V or 24 V DC.

• All power connections must be made via the VCM100 Voltage Converter Module.

• The Radar scanner must NOT be connected directly to a battery.

• The Radar scanner’s power cable must be connected directly to the VCM100 only.

• Only one Radar scanner must be connected per VCM100 unit. Each Radar scanner in your system requires a dedicated VCM100 unit.

• The power connection between the Radar scanner and the VCM100 must be via an official Raymarine combined power-and-data cable. A 15 m (49.21 ft) combined power-and-data cable with a RayNet connector (A80229) is supplied with the following part numbers: T70408, T70410, T70412 and T70414.

• Do NOT cut and re-join any part of the power cable. A range of cable lengths are available for longer cable runs. For more information, refer to: Spares and accessories

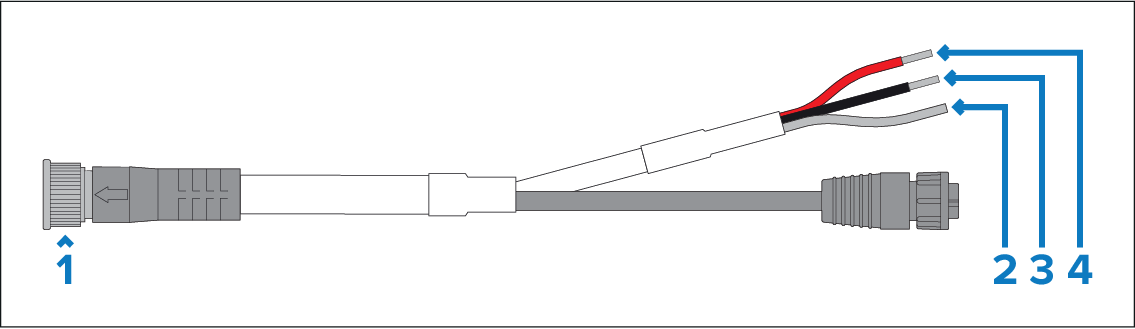

The following diagram illustrates the power connections of the combined power-and-data cable.

	Description
1	Combined power-and-data connector.
2	Screen (drain) strands — connect to one of the SCREEN terminals of the VCM100.
3	Black wire — connect to the negative POWER OUT terminal of the VCM100.
4	Red wire — connect to the positive POWER OUT terminal of the VCM100.
