Analog wind vane transducer connections

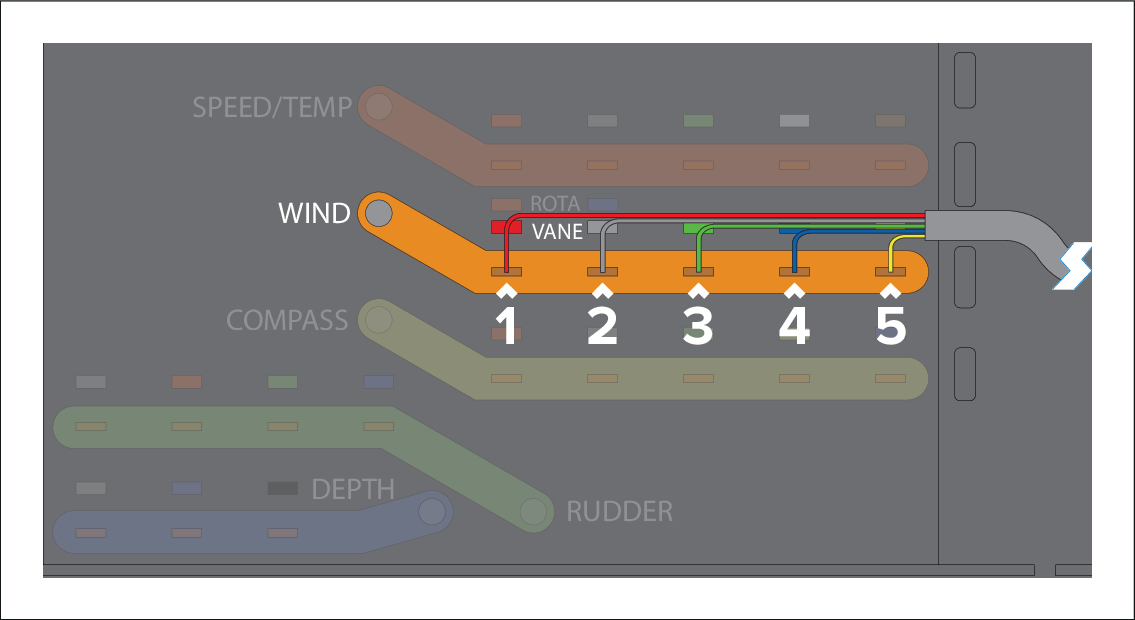

Compatible analog wind vane transducers can be connected to the iTC-5 via the following connection method.

Transducer connectionsAnalog wind vaneConnectionsAnalog wind vane

	Wire color connection	Signal name
1	Red	Wind V+
2	Screen	Wind 0V (shield)
3	Green	Sine wind direction
4	Blue	Cosine wind direction
5	Yellow	Anemometer (signal)
