Analog speed and temperature transducer connections

Compatible analog speed and temperature transducers can be connected to the iTC-5, via the following connection method.

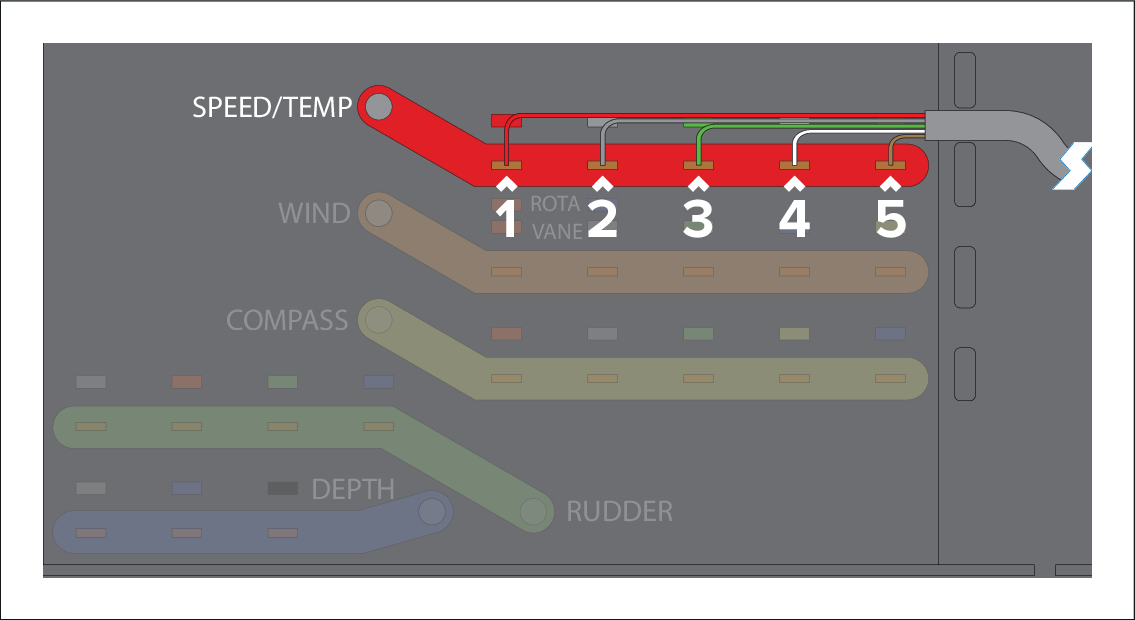

Transducer connectionsAnalog speed and temperatureConnectionsAnalog speed and temperature

	Wire color connection	Signal name
1	Red	Speed V+
2	Screen	Speed 0V (shield)
3	Green	Speed (signal)
4	White	Temperature (signal)
5	Brown	Temperature 0V
