Analog rotavecta transducer connections

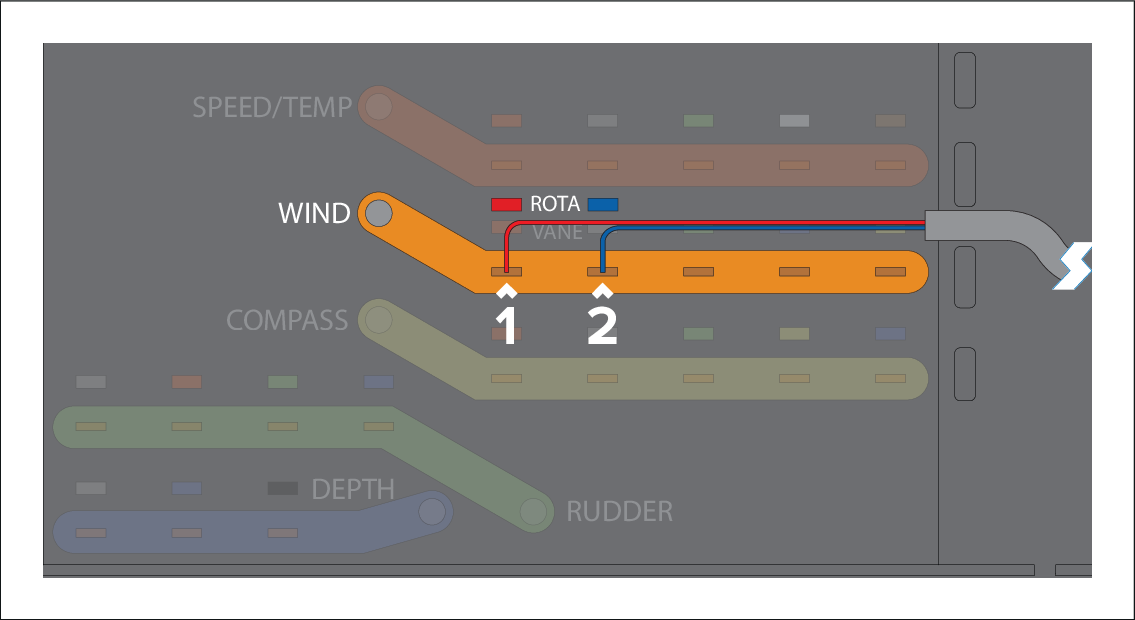

Compatible analog rotavecta transducers can be connected to the iTC-5 via the following connection method.

Transducer connectionsAnalog rotavectaConnectionsAnalog rotavecta

	Wire color connection	Signal name
1	Red	Rotor +
2	Blue	Rotor –
