Analog rudder reference transducer connections
Compatible analog rudder reference transducers can be connected to the iTC-5 via the following connection method.

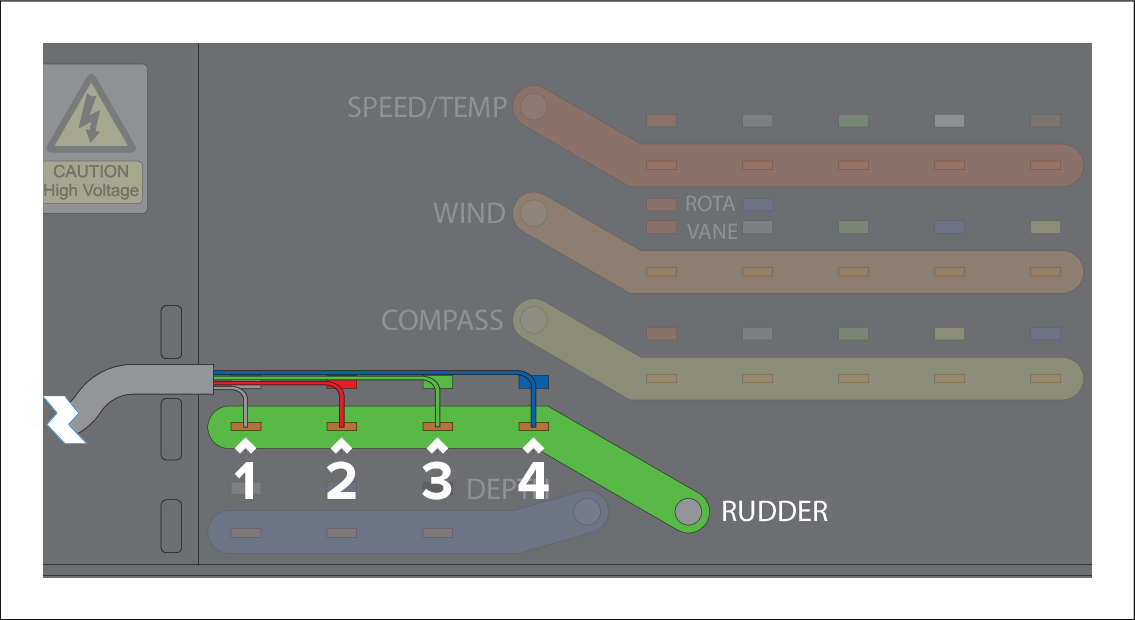

Transducer connectionsAnalog rudder referenceConnectionsAnalog rudder reference
Wire color connection |
Signal name |
|
|---|---|---|
1 |
Screen |
0V (shield) |
2 |
Red |
V+ |
3 |
Green |
0V |
4 |
Blue |
Rudder (signal) |
