Analog depth transducer connections

Compatible depth transducers can be connected to the iTC-5 via the following connection method.

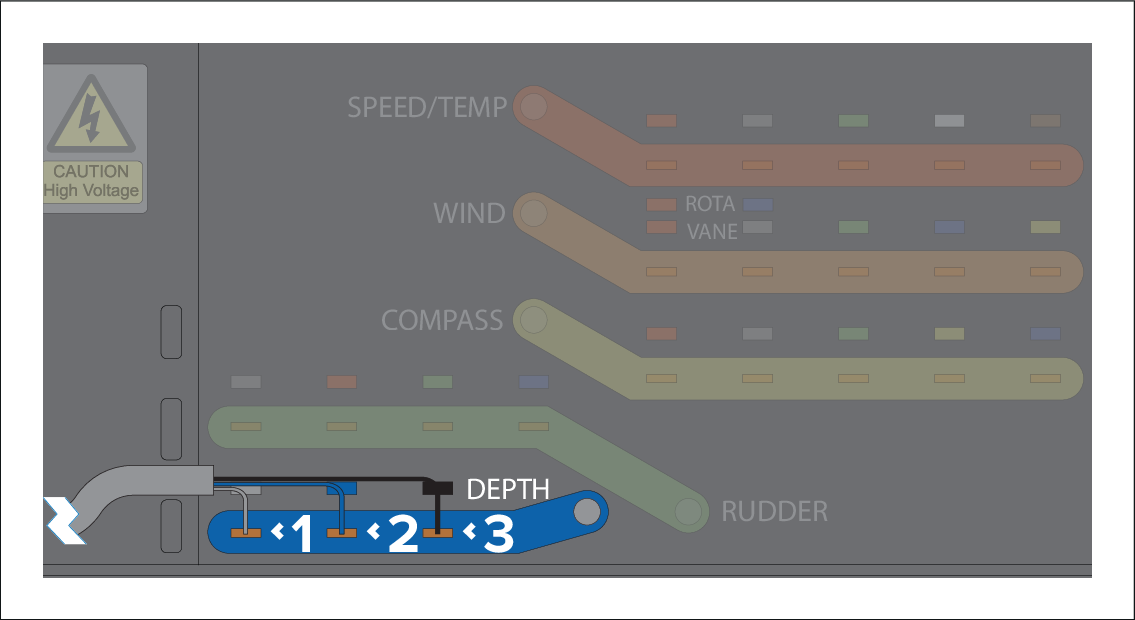

Transducer connectionsAnalog depthConnectionsAnalog depth

	Cable color	Signal name
1	Screen	0V (shield)
2	Blue	Piezoceramic +
3	Black	Piezoceramic –
