Analog fluxgate compass transducer connections

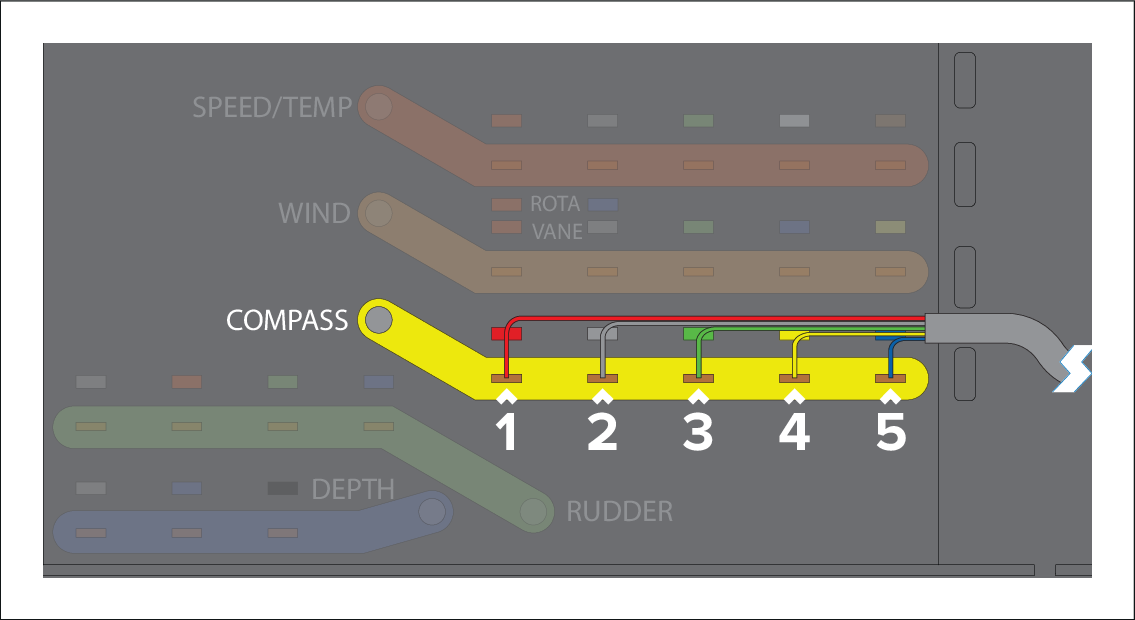

Compatible analog fluxgate compass transducers can be connected to the iTC-5 via the following connection method.

Transducer connectionsAnalog fluxgate compassConnectionsAnalog fluxgate compass

	Wire color connection	Signal name
1	Red	V ref
2	Screen	0V (shield)
3	Green	Sense B
4	Yellow	Sense A
5	Blue	Drive
