Tanks page

The tanks data page is always available. The number of tanks displayed is based on the number of each type of tank selected during the initial MFD start up wizard. The tanks page shows the capacity remaining for each tank.

Dashboard app Tanks pageTanks page

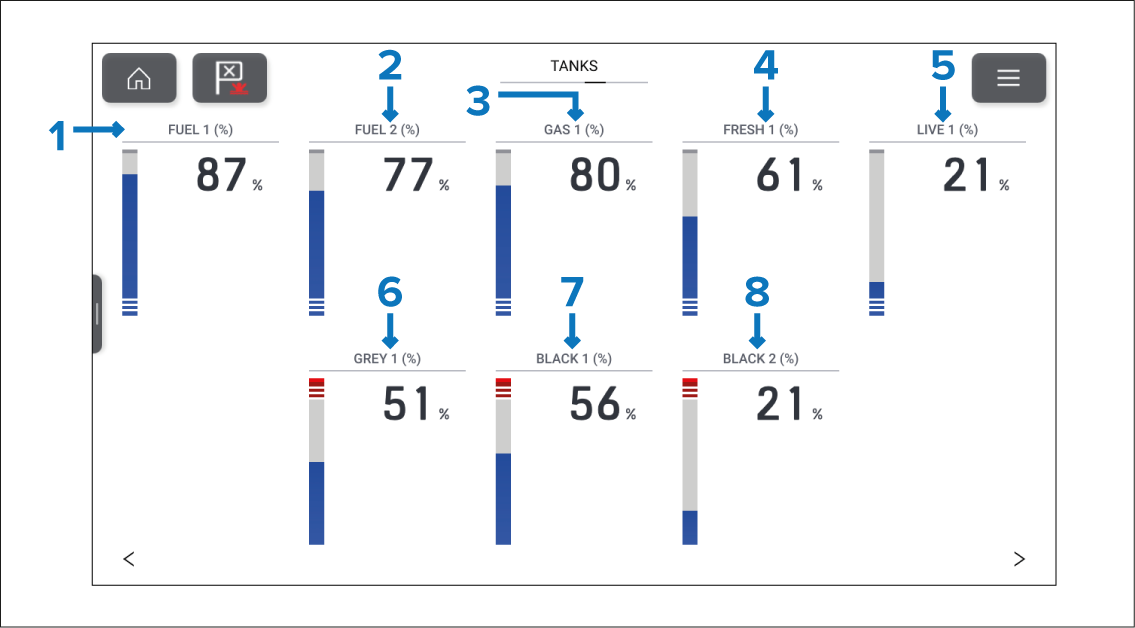

Figure 1. Example tanks page

  1. FUEL 1 (%) — Percentage of fuel remaining in Fuel tank 1.

  2. FUEL 2 (%) — Percentage of fuel remaining in Fuel tank 2.

  3. GAS 1 (%) — Percentage of fuel remaining in Gasoline tank 1.

  4. FRESH 1 (%) — Percentage of fresh water remaining in fresh water tank 1.

  5. LIVE 1 (%) — Percentage of used capacity of the live well 1.

  6. GREY 1 (%) — Percentage of grey water in grey water tank 1.

  7. BLACK 1 (%) — Percentage of black water in black water tank 1.

  8. BLACK 2(%) — Percentage of black water in black water tank 2.

The combined graphical and digital percentage data item shown on the tanks page is unique to the tanks page and cannot be reproduced on other data pages. The tank data items can be changed or hidden.

Note

The number of tanks displayed on the tanks page can only be changed by performing a factory reset and choosing a different number of tanks at the start up wizard.
