Fuel economy page

The Evene fuel economy page is available when Yanmar (Evene) has been selected as the engine manufacturer in the Boat details settings menu.

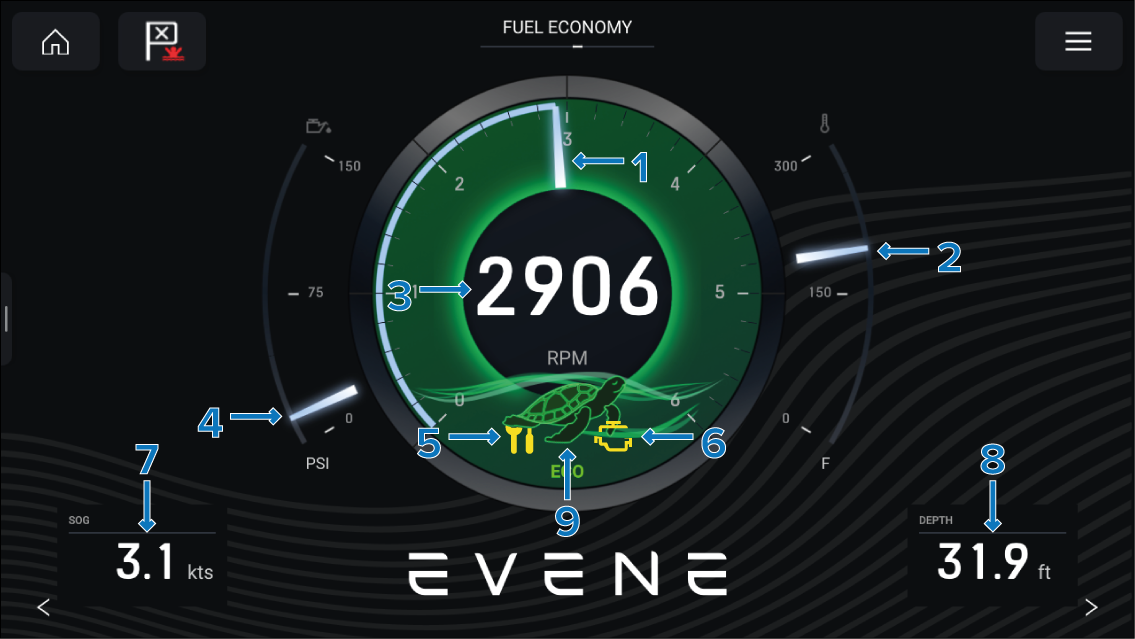

ECO modeFuel economyYanmar (Evene)ECO modeThe Fuel economy page displays the following details:

1. RPM indicator — Graphical representation of engine RPM.

2. Coolant temperature — Current engine coolant temperature indication.

3. RPM — Digital RPM value.

4. Oil pressure indicator — Current engine oil pressure indication.

5. Maintenance indicator — Illuminates when engine maintenance is required.

6. Check engine — Illuminates when an engine fault is detected.

7. SOG — Speed Over Ground.

8. Depth — Current depth reading.

9. ECO mode graphic — Indicates when the engine(s) are being driven efficiently.
