Tanks

The chartplotter can monitor the status of detected vessel tanks which use a compatible tank sender or have a compatible tank sender adaptor fitted.

TanksThe following types of tank can be monitored:

  • TanksFuel tanksFuel tanks

  • TanksFuel (gasoline) tanksFuel (gasoline)

  • TanksFresh water tanksFresh water tanks

  • TanksLive well tanksLive well tanks

  • TanksGray water tanksGray water tanks

  • TanksBlack water tanksBlack water tanks

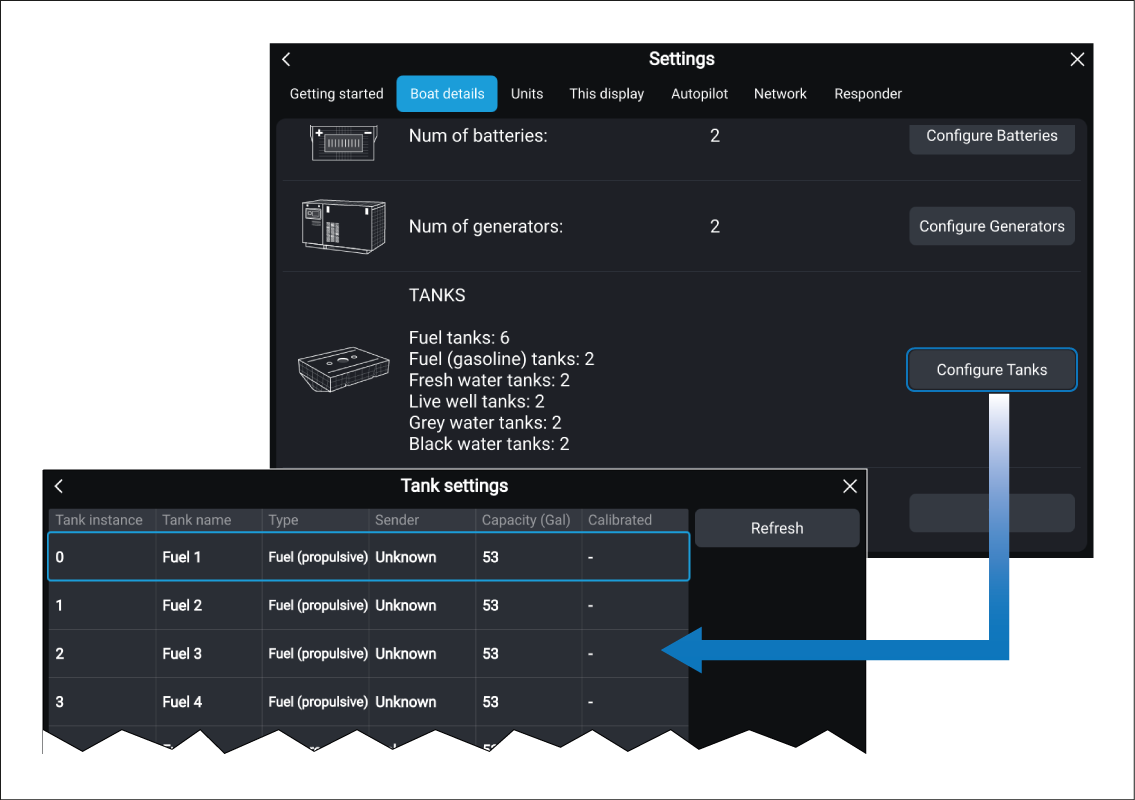

The number of each type of tank can be viewed from the Boat details settings menu. Selecting Configure Tanks will display a list of all detected tanks.

Note

If the number of tanks shown in the Boat details settings menu does not match the number of tanks listed when Configure Tanks is selected then either:

  • The tank may not have a compatible sender, or sender adaptor.

  • There is a problem with the data connection, or with the tank’s sender, or sender adaptor.
