DownVision sonar display settings

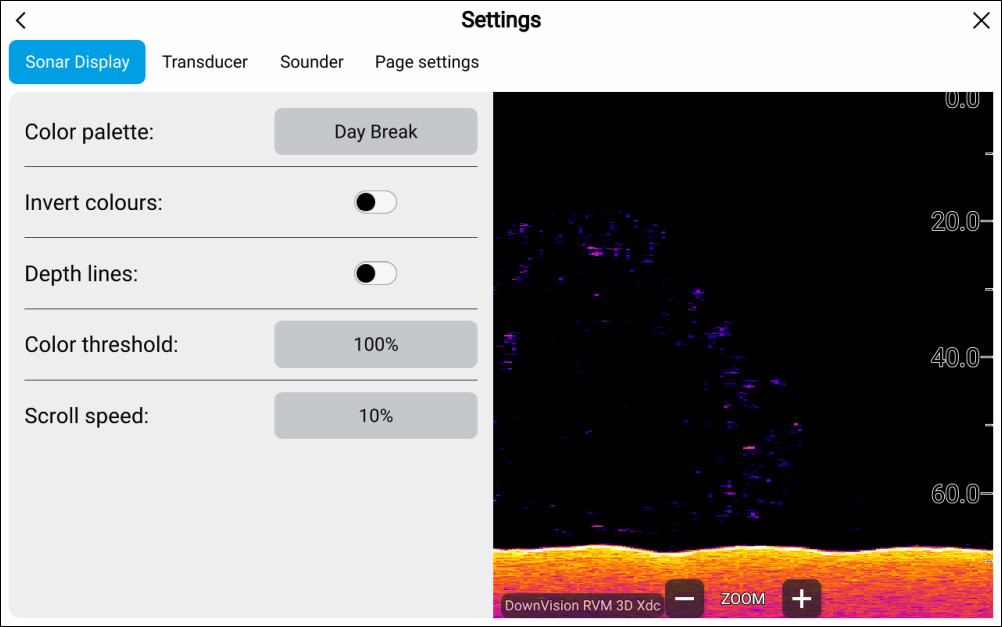

The DownVision™channel includes the following Sonar display options:

• Fishfinder Color paletteColor palette: — select to change the color palette used to identify the bottom, bottom structure and detected targets. The following color palettes are available:

  • Day Break (RVM transducers only)

  • Coho Salmon (RVM transducers only)

  • Mahi (RVM transducers only)

  • Snapper (RVM transducers only)

  • Yellowfin (RVM transducers only)

  • Copper

  • Slate Gray

  • Lime Green

  • Burnt Yellow

  • Cool Blue

  • Ruby Red

• Fishfinder Invert colorsInvert colors: — in the Fishfinder app color scales or shading is used to differentiate distances, depths and/or intensity of detected objects. you can invert the colors by selecting this option.

• Fishfinder Depth linesDepth lines: — select to enable and disable onscreen horizontal lines to represent water depth.

• Fishfinder Color thresholdColor threshold: — select to adjust the color threshold. Color threshold determines the signal strength below which target returns are not shown. A low value results in only the strongest colors or lightest shades being displayed.

• Fishfinder Scroll speedScroll speed: — select to adjust the speed the scrolling image.
