Sailing page

The sailing data page is available when the MFD has been configured to use the Sailing boating activity during the initial MFD start up wizard. The sailing page includes data relevant to sailing and includes a graphical sailing dial.

Dashboard app Sailing pageSailing dialSailing page Sailing dialThe apparent wind dial is the default dial displayed on the sailing page.

When the Sail performance setting has been configured dynamic wind angle targets will be displayed. The sail performance setting can be configured from the Boat details menu: Homescreen > Boat details > Sail performance.

If the Sail performance setting has not been configured then close hauled angle indicators are displayed instead of wind angle targets.

The sailing page can be used in combination with the Laylines feature available in the chart app to optimize your sailing performance. For details about the layline features refer to: Laylines

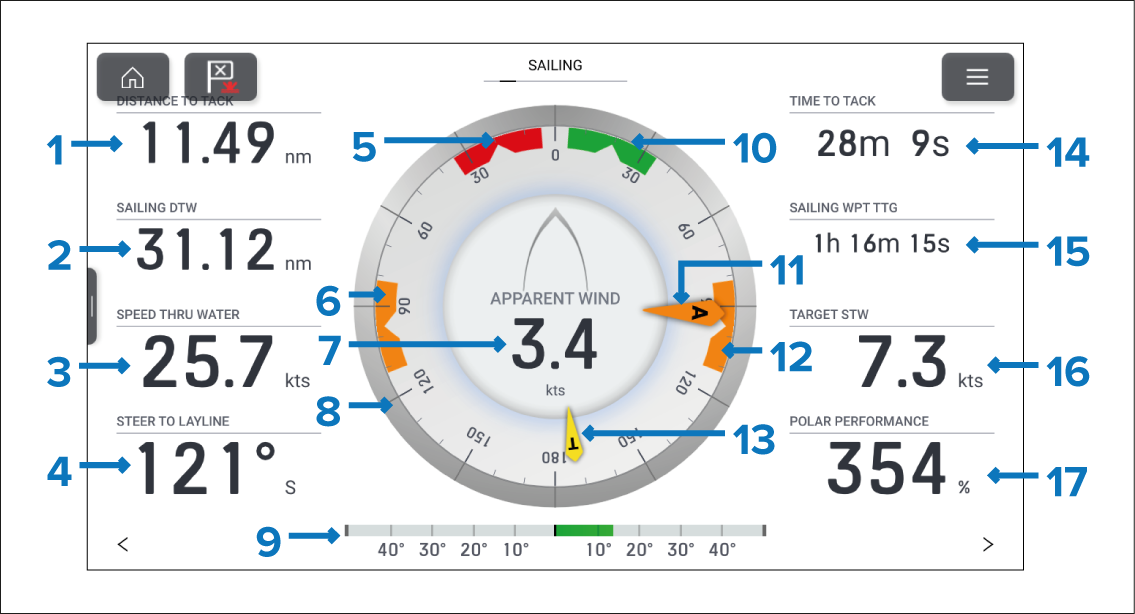

Figure 1. Example — Sailing page with apparent wind sailing dial

  1. DISTANCE TO TACK — Distance to go before performing a tack.

  2. SAILING DTW — Distance To Waypoint (current destination waypoint or goto location).

  3. SPEED THRU WATER — Current vessel speed received from speed transducer.

  4. STEER TO LAYLINE — Heading to steer to layline.

  5. Port wind angle target — Align the larger wind indicator (AWA or TWA) with the notch to optimize Velocity Made Good (VMG) when tacking to port upwind.

  6. Downwind angle target — Align the larger wind indicator (AWA or TWA) with the notch to optimize Velocity Made Good (VMG) when gybing downwind

  7. Apparent wind speed

  8. Compass dial — The compass dial remains fixed and the indicators move around the dial to indicator direction/angle.

  9. Rudder bar — Provides an indication of rudder position.

  10. Starboard wind angle target — Align the larger wind indicator (AWA or TWA) with the notch to optimize Velocity Made Good (VMG) when tacking to starboard upwind.

  11. AWA indicator — Apparent Wind Angle.

  12. Downwind angle target — Align the larger wind indicator (AWA or TWA) with the notch to optimize Velocity Made Good (VMG) when gybing downwind

  13. TWA indicator — True Wind Angle.

  14. TIME TO TACK — Time left to tack.

  15. SAILING WPT TTG — Waypoint Time To Go (current destination waypoint or goto location).

  16. TARGET STW — Speed Through Water target.

  17. POLAR PERFORMANCE

The apparent wind dial can be changed to one of the alternative sailing dials. For details refer to: Sailing dials

The sailing dials are unique to default pages and cannot be reproduced on custom data pages.

Data items 1 to 4 and 14 to 17 can be customized. Data item 9 can be hidden if desired.
