Rolling road page

The rolling road data page is always available. The rolling road page includes data relevant to navigation and includes a graphical rolling road.

Dashboard app Rolling road pageRolling road page

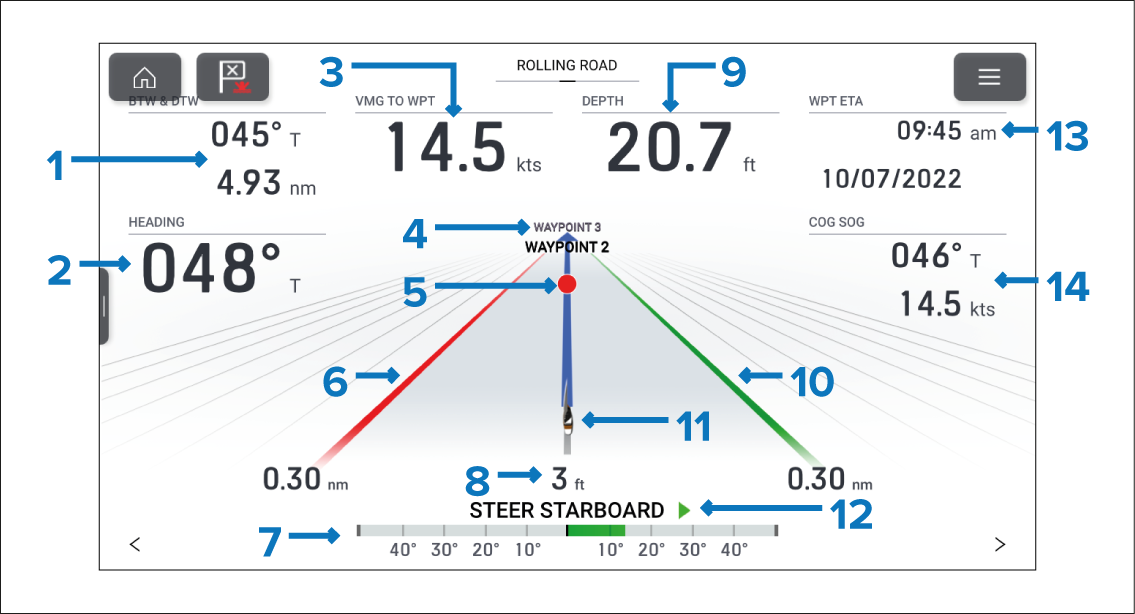

Figure 1. Default Navigation page

  1. BTW & DTW — Bearing and distance to active waypoint or goto location.

  2. HEADING — Current vessel heading.

  3. VMG TO WPT — Velocity Made Good to the active waypoint or goto location.

  4. Next waypoint — When following a route the next waypoint is displayed.

  5. Active waypoint symbol — Active waypoint is the current destination (waypoint or goto location).

  6. Left boundary line

  7. Rudder bar — Provides an indication of rudder position.

  8. Cross Track Error (XTE) — Distance from track line.

  9. Depth — Current water depth.

  10. Right boundary line

  11. Vessel icon — Current vessel position.

  12. Steering indicator — Provides steering instruction.

  13. WPT ETA — Estimated time of arrival for the active waypoint location.

  14. COG SOG — Course Over Ground & Speed Over Ground.

The rolling road graphic can be reproduced on custom pages using the Navigation > Rolling road data item. The rolling road graphic can be changed or hidden.

Data items 1 to 3, 9, 13 and 14 can be customized. Data item 7 and 12 can be hidden if desired.
