Placing a waypoint at your vessel's location

Waypoints can be placed at your vessel’s location from any app using the Waypoint\MOB icon or, the physical Waypoint/MOB button. The physical button can also be used to place a waypoint at your vessel’s location from the Homescreen or when a menu is open.

Axiom Pro displays, Axiom 2 Pro displays and RMK-Series keypads include the physical Waypoint/MOB button.

Waypoints Placing a waypointPlacing a waypoint

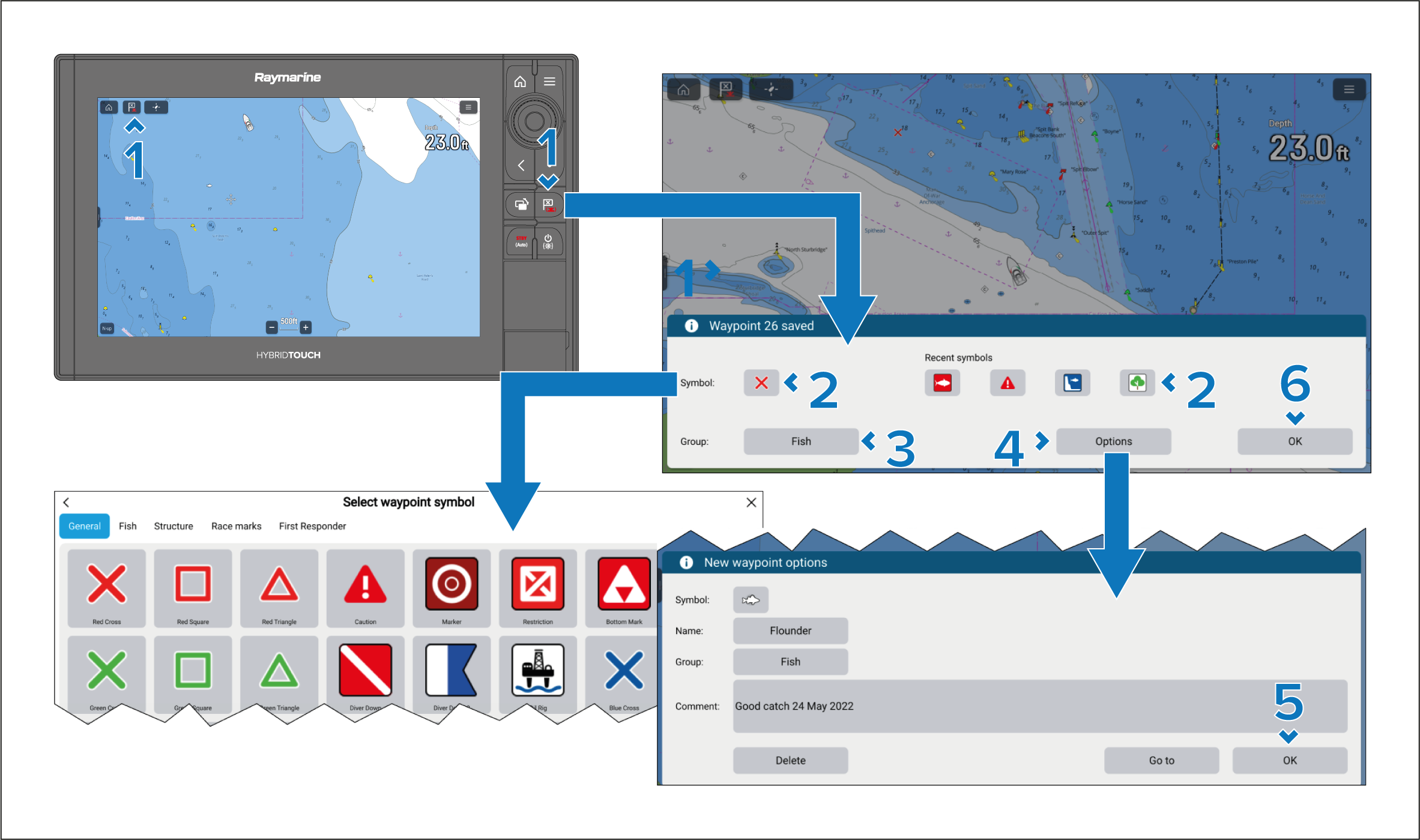

1. Select the Waypoint/MOB icon or the physical button.
2. Select OK to accept the default waypoint settings, or:
3. You can customize the symbol used for the waypoint.

   You can either select a recently used symbol, or select the Symbol field to select a symbol from the waypoint symbol lists.

4. You can select the Group field to select or create a group for the new waypoint.
5. You can select Options to enter further details about the waypoint.

   From the options dialog you can edit the waypoint’s symbol, name, or group and also enter a comment about the waypoint.

6. Select OK to accept the waypoint options.
7. Select OK to close the waypoint dialog.

From the Waypoint options you can Delete the waypoint or perform a Go to.

Note

In additional to the Time and Date the waypoint was created, when the data is available, Water temperature and Depth will also recorded in the waypoint details.
