Opening the Video app
The Video app is opened by selecting an app page icon from the Homescreen which includes the Video app.
Pre-requisites:
Ensure your video feed is compatible by checking the latest details available on the Raymarine website against your device’s specification. If in doubt please contact an authorized Raymarine dealer for advice.
Ensure you have installed your video device in accordance with the documentation that was supplied with your device.
The Video app will open in 1 of 3 states:
If the Video app is opened soon after powering on your system, you may have to wait for the device(s) to finish booting before the video feed is displayed.

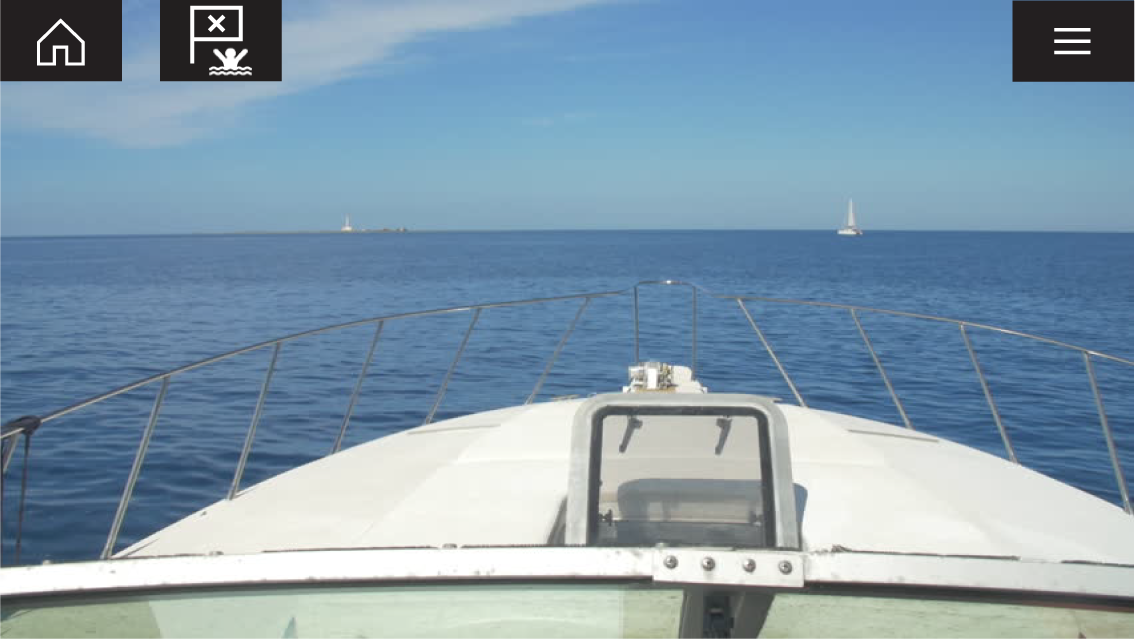

Video feed displayed
If your device is powered up and operational then the Device’s video feed is displayed.

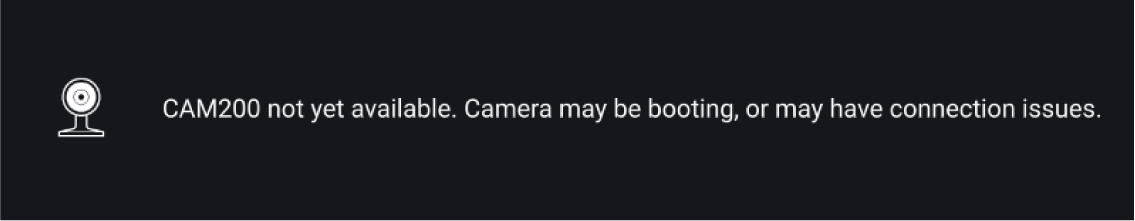

Camera not yet available
The ‘Camera not yet available’ message is displayed if:
a Video app page is opened before the camera has finished booting up.
connection to the camera is lost.
If the ‘Camera not yet available’ message is displayed for more than 2 minutes, then your MFD cannot connect to your camera. Ensure network and power connections to your camera and MFD are correct and free from damage and then power cycle your system. If the camera feed is still not displayed, refer to your equipment’s installation documentation for further troubleshooting information.

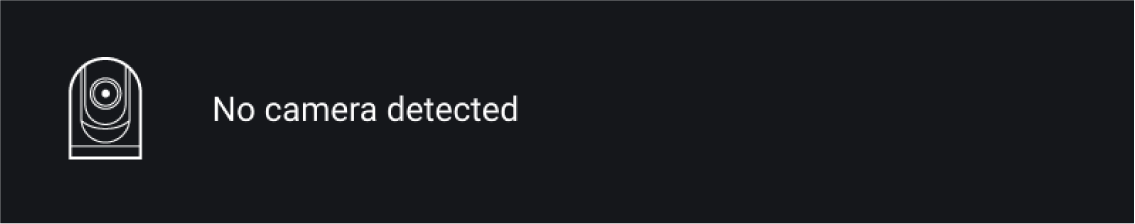

No camera detected
The ‘No camera detected’ message is displayed if:
a Video app page is opened for the first time and no compatible camera is connected.
a Video app page is opened for the first time before the camera has finished booting up.
If the ‘No camera detected’ message is displayed for more than 2 minutes, then your MFD cannot connect to your camera. Ensure network and power connections to your camera and MFD are correct and free from damage and then power cycle your system. If the camera feed is still not displayed, refer to your equipment’s installation documentation for further troubleshooting information.
