Import and export Waypoints and Routes over NMEA networks
Waypoints and Routes can be imported and exported over NMEA 0183 and NMEA 2000 (N2K) / SeaTalkng®
Receiving waypoints and routes is subject to the waypoint and route capacity of your MFD. The transfer will fail if the MFD’s capacity is reached during the transfer. For capacity limits refer to: Waypoint, routes and tracks capacity
It is recommended that importing and exporting waypoints over NMEA 0183 and NMEA 2000 is used for small batches of less than 150 waypoints. The preferred method for importing and exporting larger amounts of waypoint is via memory card transfer. Refer to: Import/export

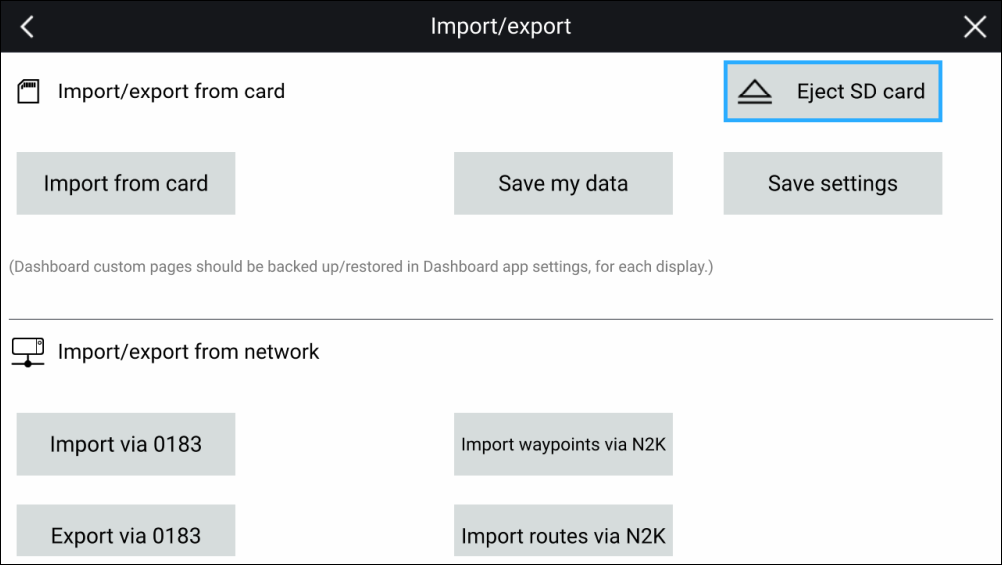

The import and export options are available from the Import/Export menu: .
The Import waypoints via N2K and Import Routes via N2K options are only enabled when another compatible MFD is present on the NMEA 2000 / SeaTalkng®network.
The Import via 0183 and Export via 0183 options are always enabled and require interaction on the other MFD.
