Find me
The Find me feature assists you in finding the physical installation location of a specific Raymarine SeaTalk NG position sensor (i.e.: RS150, EV-1, EV-2, or AR200).
The Find me feature works by making the selected device’s status LED flash continuously for 5 minutes, giving you time to search the vessel to determine the device’s physical location. The feature works even if the device’s LEDs have been switched to Always off.
The Find Me flash sequence will be visibly different than normal LED status sequences in that both the red and green LEDs will flash on and off at the same time, twice every second for 5 minutes.
The Find me feature may not be available on devices running older software versions. Ensure that you obtain the latest available software for your position sensors.
Position sensorFind meFind Me

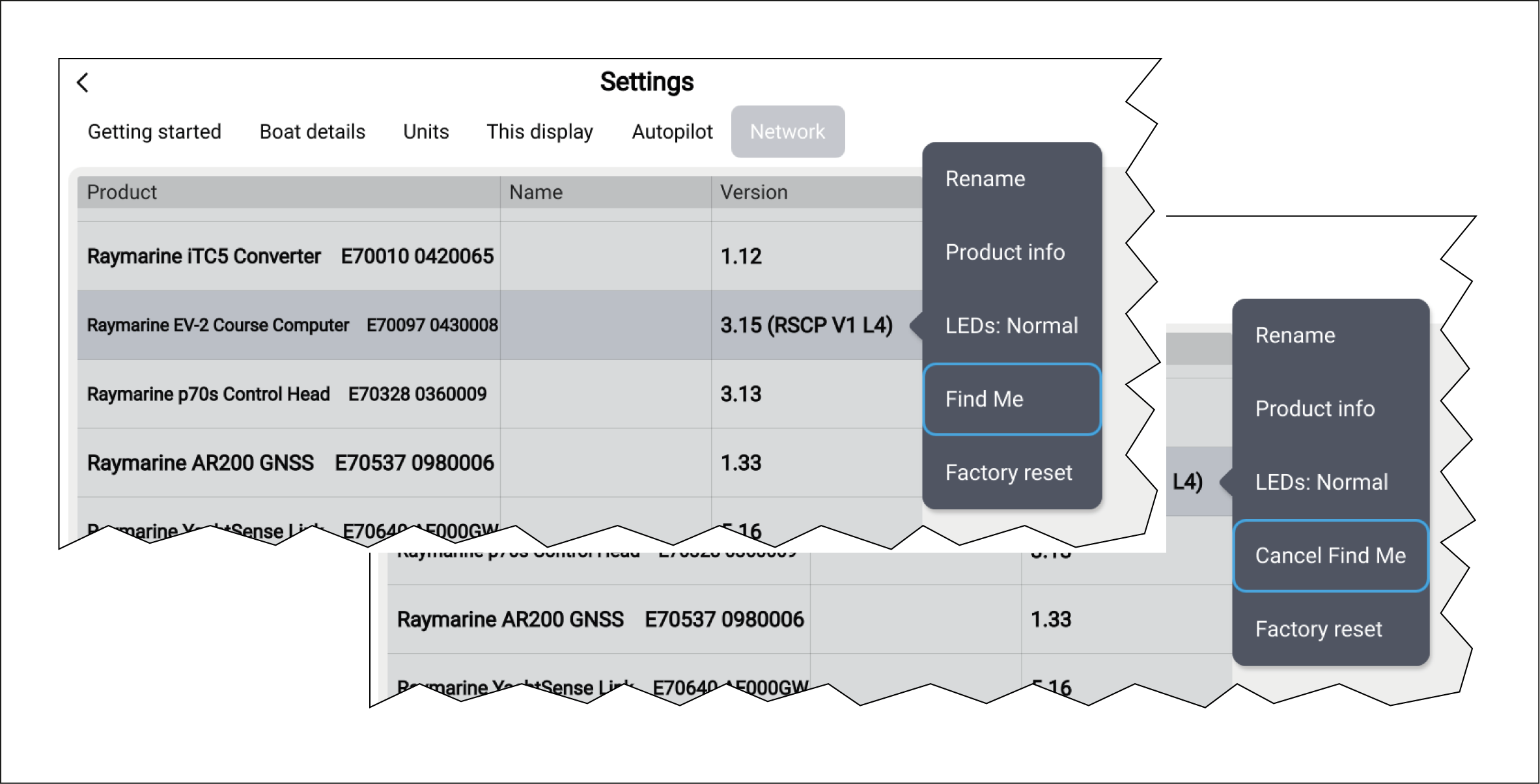

To initiate the Find Me feature for a specific SeaTalk NG device, locate the device name in the Network settings menu, and then select Find Me from the device’s pop-over menu.
Once Find Me has been activated, its menu option will change to Cancel Find Me until 5 minutes has elapsed.
Selecting Cancel Find Me at any time within the 5 minute timeframe will stop the LED flashing and return the device to its previous LED state.
