Engine RPM settings

The advanced settings menu allows you to specify some advanced settings for engine RPM dials and data.

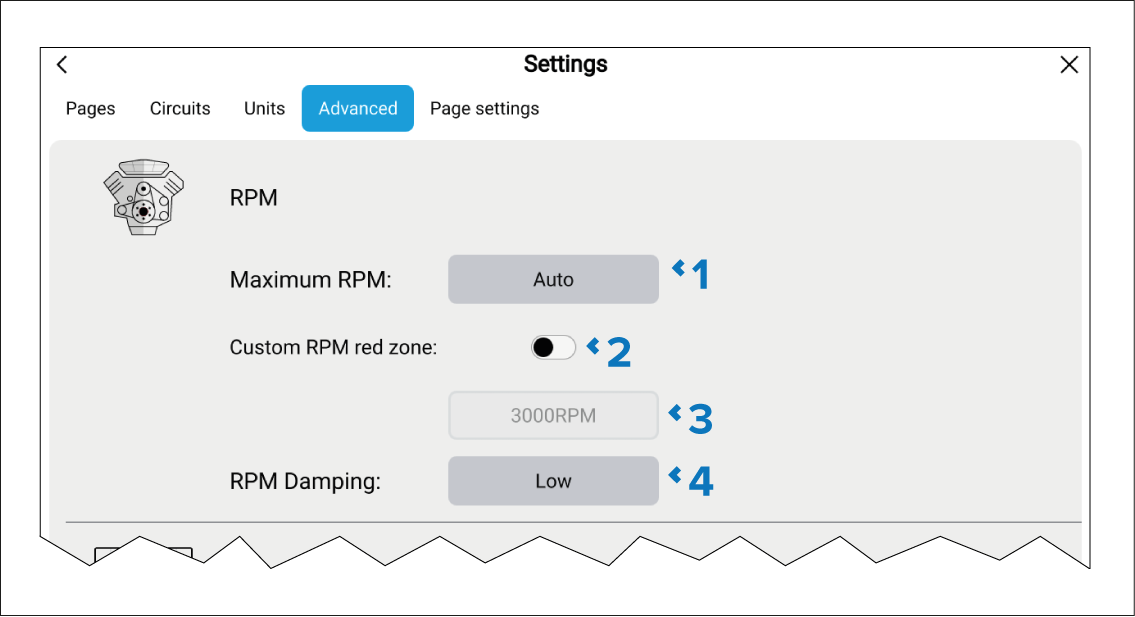

Dashboard app Advanced settings menuDashboard app RPM settings

Engine RPM settings

The following engine RPM settings are available:

  1. EngineMaximum RPMDashboard app Maximum RPMMaximum RPM — Select to specify a maximum RPM for your engine dials, or allow the system to automatically configure the Maximum RPM.

  2. EngineCustom RPM red zoneDashboard app Custom RPM red zoneCustom RPM red zone — Enable toggle to allow selection of a custom red zone for engine RPM dials.

  3. Dashboard app Custom RPM red zone field — With Custom RPM red zone enabled you can specify the RPM at which the red zone begins.

  4. EngineRPM DampingDashboard app RPM Damping — You can specify how sensitive to change the engine RPM read out is. The RPM damping can be Off, Low or High.
