Dashboard app overview

The Dashboard app enables you to view system data. System data may be generated by your MFD or by sensors and devices connected to your MFD via SeaTalk NG/NMEA 2000 and ethernet networks. The Dashboard app can also be configured to provide monitoring and control of compatible 3rd party digital control/switching systems.

Note

For data to be available in the Dashboard app it must be transmitted to your MFD from compatible hardware using supported protocols and messages.

Dashboard appThe Dashboard app can be displayed in Fullscreen and half screen portrait app pages.

For each instance of the Dashboard app you can select which pages you want to display, Page selection will persist over a power cycle.

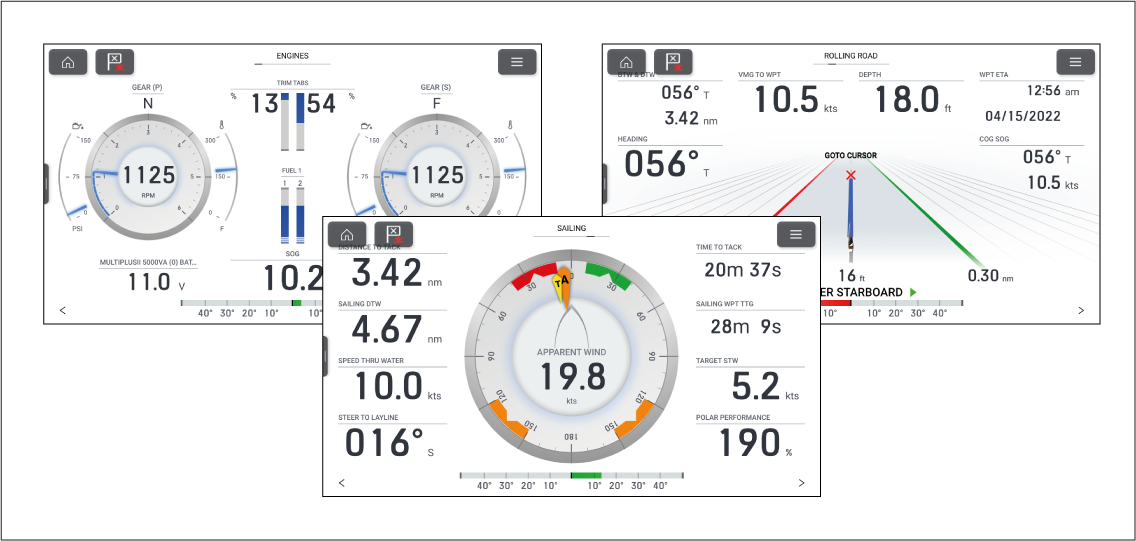

Figure 1. Example Dashboard app pages

The Dashboard app is pre-configured with a number of customizable pages based on your chosen MFD profile and connected devices.
