Current station information

Depending on your cartography, Current station information may be available at the location of Current stations.

Current station symbol

ChartCurrent station

The location of Current stations is marked on the Chart using a diamond-shaped symbol with a ‘C’ in the middle. The symbol color may vary.

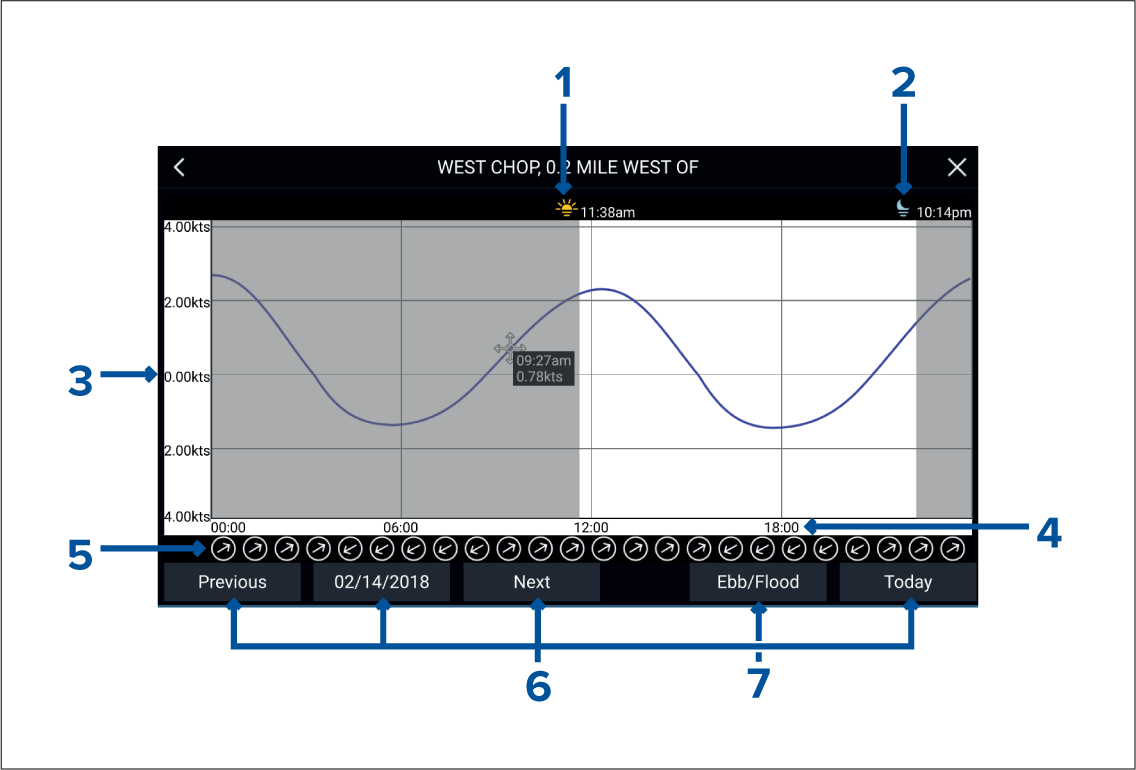

Current graph

ChartCurrent graphCurrent graphs can be accessed by selecting Current station from the Current station’s context menu.

  1. Sunrise — Indicates time of sunrise.

  2. Sunset — Indicates time of sunset.

  3. Speed — Provides current speed in selected units.

  4. Time — Indicates time of day.

  5. Direction — Indicates the direction of the current (relative to North).

  6. Time and date options — Use the buttons to view previous, next or today’s tide predictions, or enter a date by selecting the date field.

  7. Ebb / Flood — Displays a list showing ebb, slack and flood tides.
