LightHouse Charts dynamic current graphic

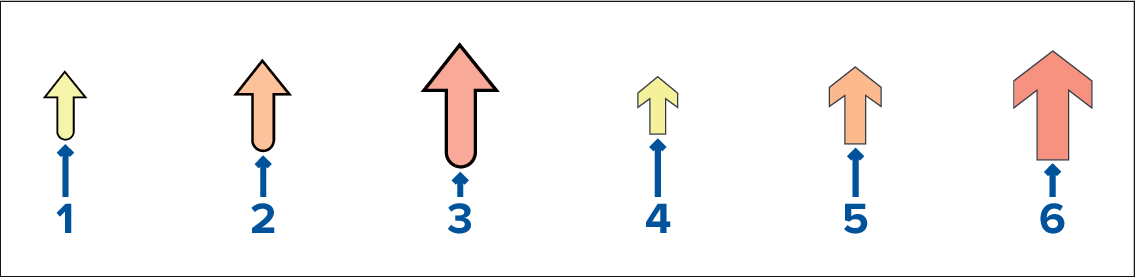

When the Tides layer is enabled or when the Chart app is in Tides mode, the standard Current station symbol is replaced with a dynamic Current graphic. Arrows are used to indicate the direction of current flow. The size and color of the arrow indicates the strength of the current:

1. Yellow small arrow: 0 Knots to 1.0 Knots (Leisure chart style)

2. Orange medium arrow: 1.1 Knots to 2.0 Knots (Leisure chart style)

3. Red large arrow: Greater than 2.0 Knots (Leisure chart style)

4. Yellow small arrow: 0 Knots to 1.0 Knots (Government chart style)

5. Orange medium arrow: 1.1 Knots to 2.0 Knots (Government chart style)

6. Red large arrow: Greater than 2.0 Knots (Government chart style)
