Anchor here mode
Anchor here mode acts as a virtual anchor and automatically controls steering and thruster speed to maintain the boat’s position. In anchor mode, the bow should maintain position, however the boat may swing around depending on conditions.

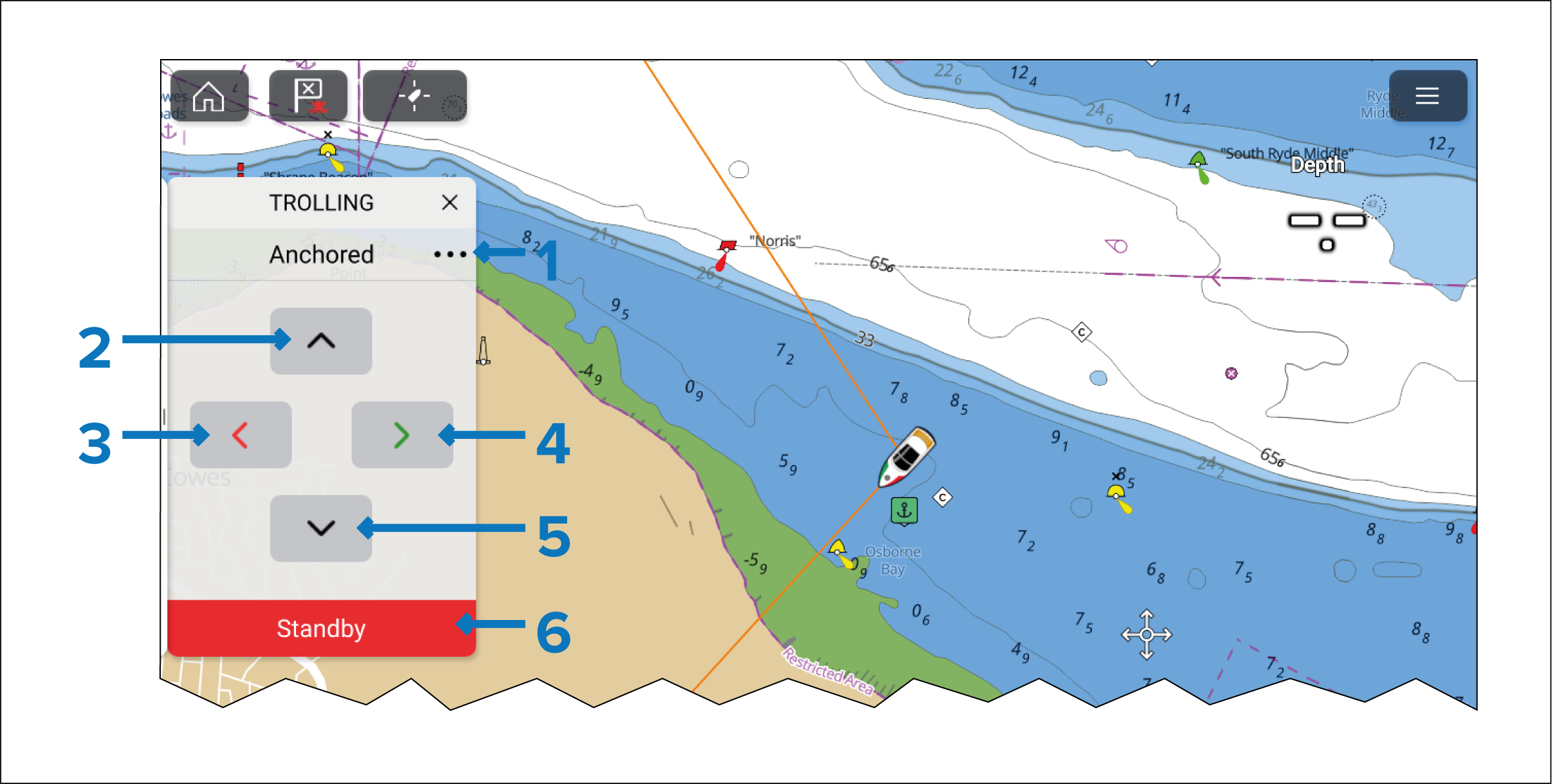

Sidebar TrollingTrolling motor Anchor mode
The Anchor mode sidebar includes the following controls:
Menu — Select the three dots to access the available Trolling motor modes.
Forwards.
Left.
Right.
Backwards.
Standby — You can select Standby at any time to place the Trolling motor into standby mode.
Selecting the directional controls Up, Down, Left, Right will move (‘jog’) the anchor location in 5 foot increments, relative to the boat’s heading. E.g.: Selecting the Right button once will move the anchor location 5 feet to the right of the boat’s bow.
In anchor mode, the trolling motor will operate causing the bow of the boat to move as needed to maintain its location. Unexpected movement of the boat may cause imbalance. Be cautious when using this mode until you are familiar with how the system works.
Increments of speed/thrust and steering are commanded by the Trolling motor and as such the stated increments could be different or change.
