Adjusting a Polar table

Imported polar tables can be adjusted.

Polar table Adjustment

Only the vessel speed values can be adjusted, the TWA and TWS ranges cannot be changed.

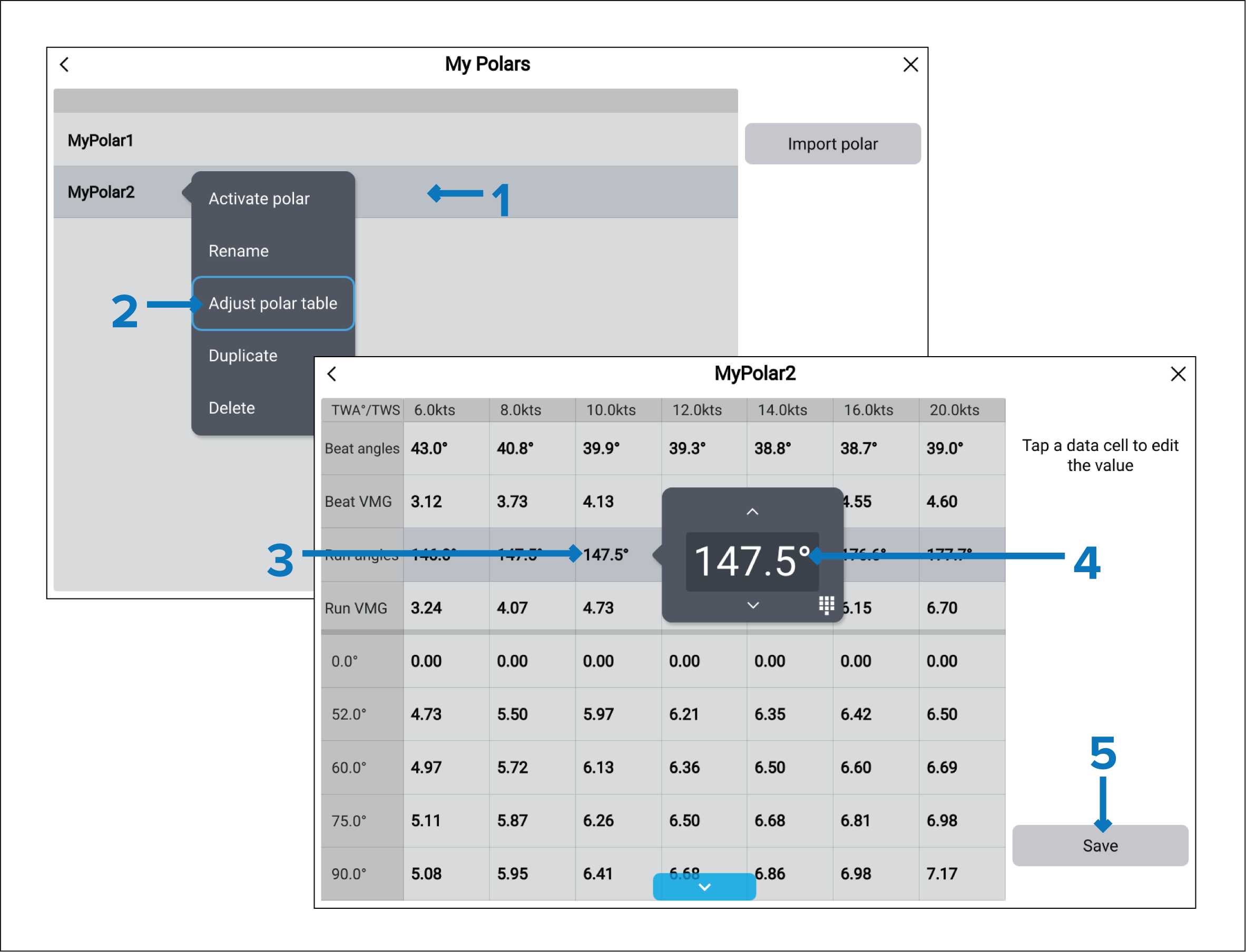

  1. Select the imported Polar table that you want to adjust from the My polars list.
  2. Select Adjust polar table from the pop-over menu.
  3. Select the value that you want to adjust.
  4. Use the Up and Down arrows on the numeric adjustment control to change the value, or select the keypad symbol to enter a value using the onscreen keypad.
  5. Select another location on the screen to close the numeric adjustment control and then select Save.
