Multiple view

The Multiple view includes multiple data boxes for displaying information.

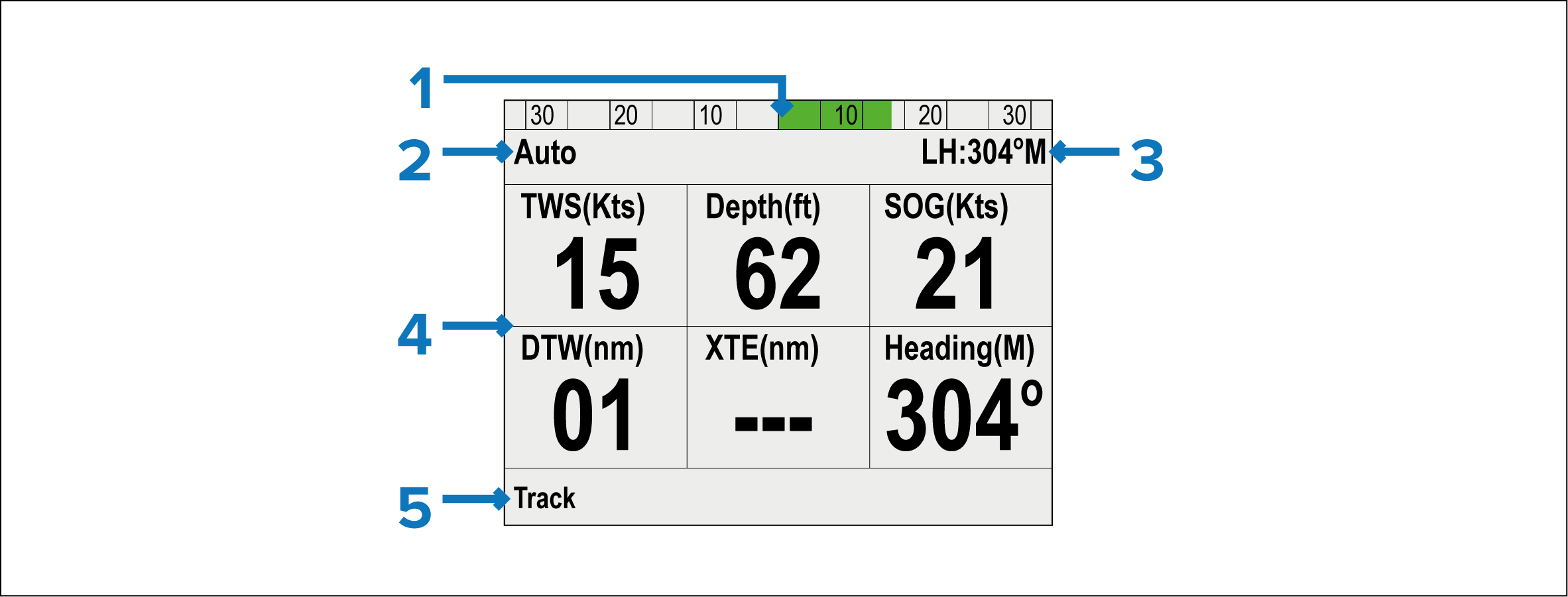

Multiple view

  1. Rudder position

  2. Mode related info:

    • Current Heading (In Auto)
    • Destination waypoint name (In Track mode)
    • Locked wind angle (In Wind vane mode)
    • Pattern symbol (In Pattern mode)
    • Power Steer symbol (In Power steer mode)

  3. Data boxes:

    • TWS (True Wind Speed)

    • Depth

    • SOG (Speed Over Ground)

    • DTW (Distance To Waypoint)

    • XTE (Cross Track Error)

    • Heading

    Note

    Data items can be customized from the Pilot view menu: Menu > Pilot view > Data Boxes

  4. Shortcut button (Left soft button):

    • Track

    • Pattern

    • Wind Vane
