Large view

The Large view has been optimized to provide the largest possible sized text for heading data.

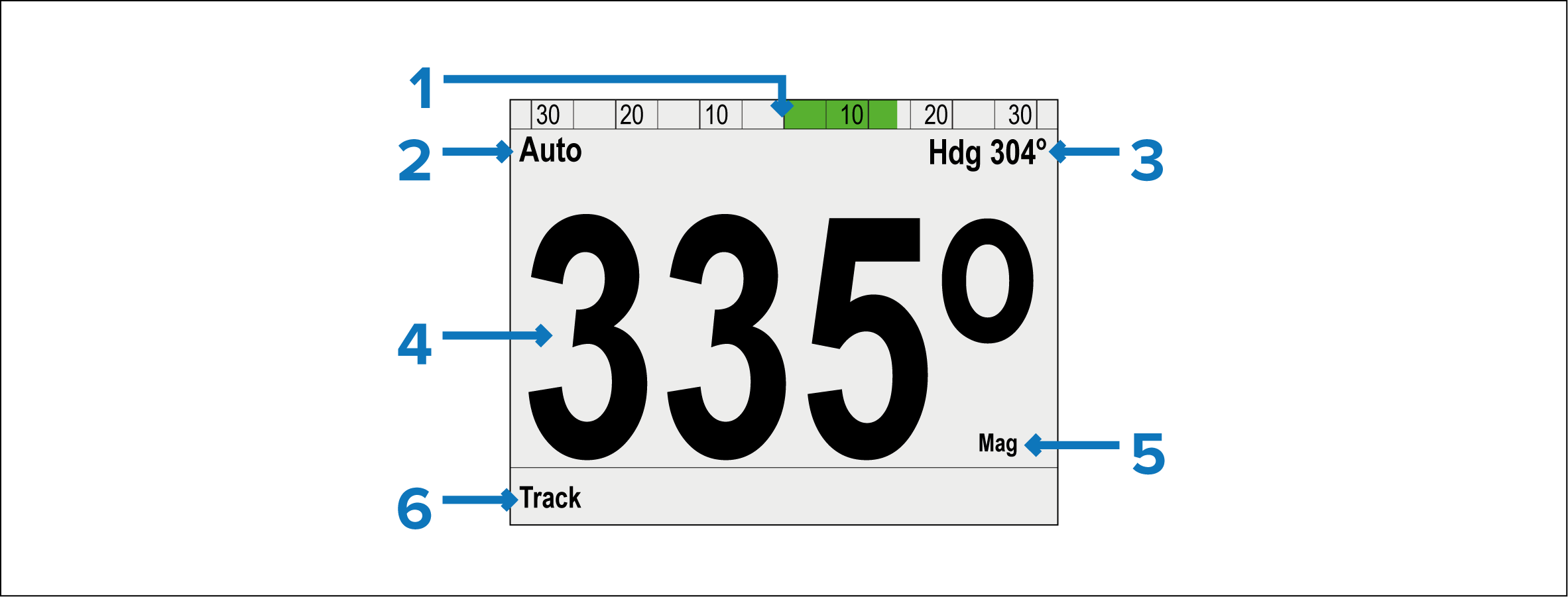

Large view

  1. Rudder position

  2. Pilot mode

  3. Mode related info:

    • Current Heading (In Auto)
    • Destination waypoint name (In Track mode)
    • Locked wind angle (In Wind vane mode)
    • Pattern symbol (In Pattern mode)
    • Power Steer symbol (In Power steer mode)

  4. Heading:

    • Current Heading — (In Standby and Power steer modes)

    • Locked Heading — (In Auto, Track, Wind vane and Pattern modes)

  5. Heading type (Magnetic or True)

  6. Shortcut button (Left soft button):

    • Track

    • Pattern

    • Wind Vane
