Output cable wiring

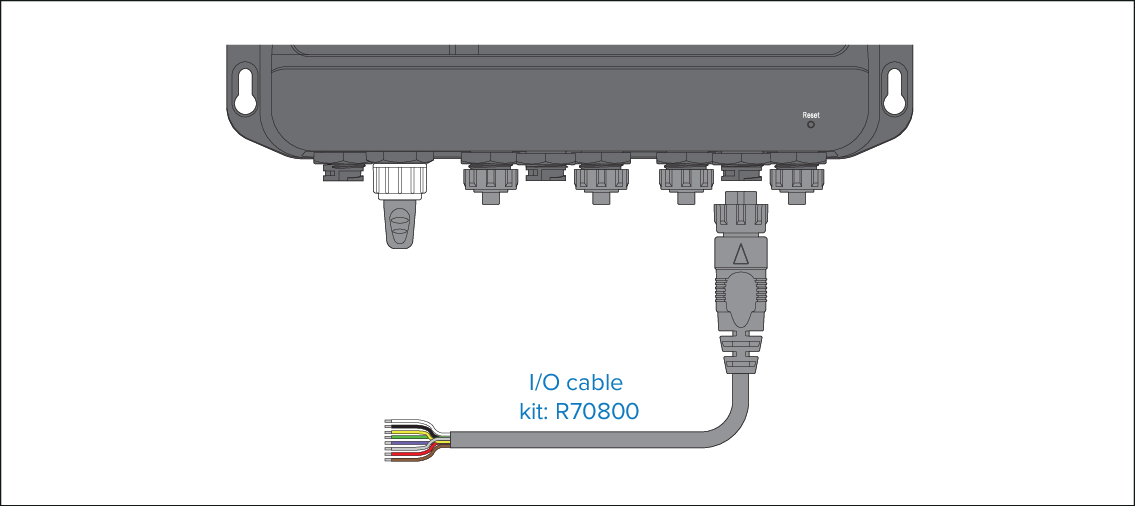

The router’s I/O channels 5 to 8 are output channels. The supplied output cable (included in kit: R70800) must be used to connect automotive relays to the router’s output connector.

ConnectionsOutput channelsOutput channels

Output cable signal wires

  • White = Output 1 Normally open terminal (N/O)

  • Black = Output 1 Common terminal (COM)

  • Yellow = Output 2 Normally open terminal (N/O)

  • Green = Output 2 Common terminal (COM)

  • Purple = Output 3 Normally open terminal (N/O)

  • Gray = Output 3 Common terminal (COM)

  • Red = Output 4 Normally open terminal (N/O)

  • Brown = Output 4 Common terminal (COM)

The output channels can be controlled from the YachtSense™ Link web interface or from the Raymarine app.
