Accessing the web interface from a Raymarine display
The router’s settings are accessed using the built-in web interface. The web interface can be accessed using a wired connection to a Raymarine display running the LightHouse 4 operating system..
Important
The display and router must be connected to the same Ethernet network using the RayNet connection, and must both also be connected to the same NMEA 2000 (SeaTalk NG) network.
From the display’s homescreen:

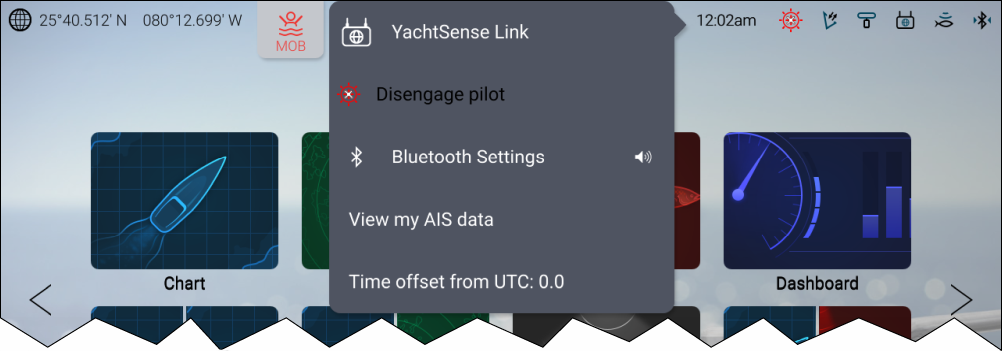

- Select the status area on the top right of the screen.
- Select YachtSense Link from the pop-over options.
The status page is displayed. You can now use the Menu displayed on the left to navigate the web interface and change the router’s settings, as required.

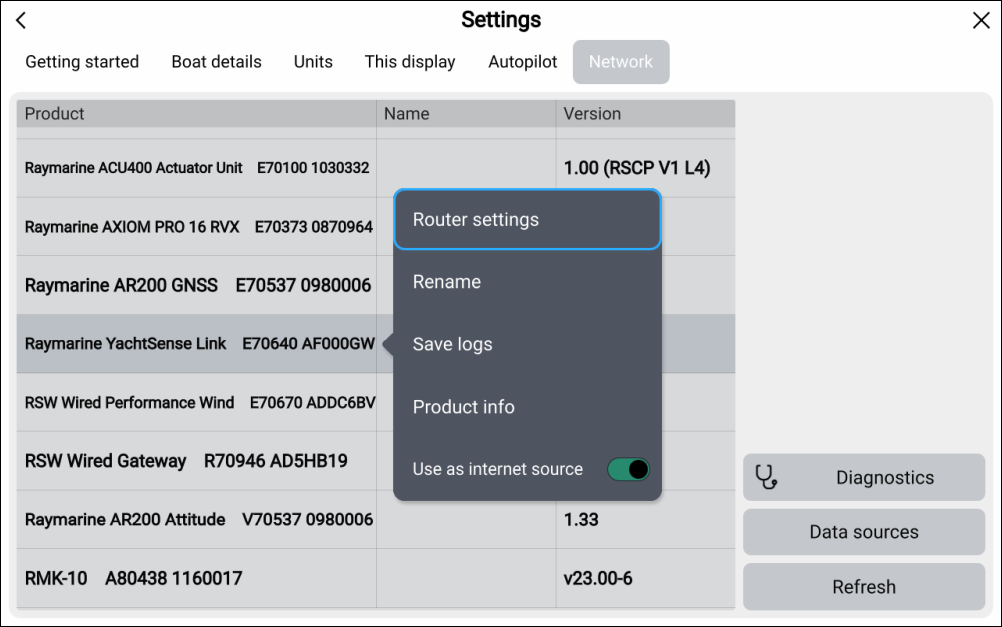

The router’s web interface can also be accessed from the Network menu: by selecting Raymarine Yachtsense Link from the list and then selecting Router settings from the pop-over options.
