Status page overview

Once you have logged-in to the router’s web interface, the status page is displayed.

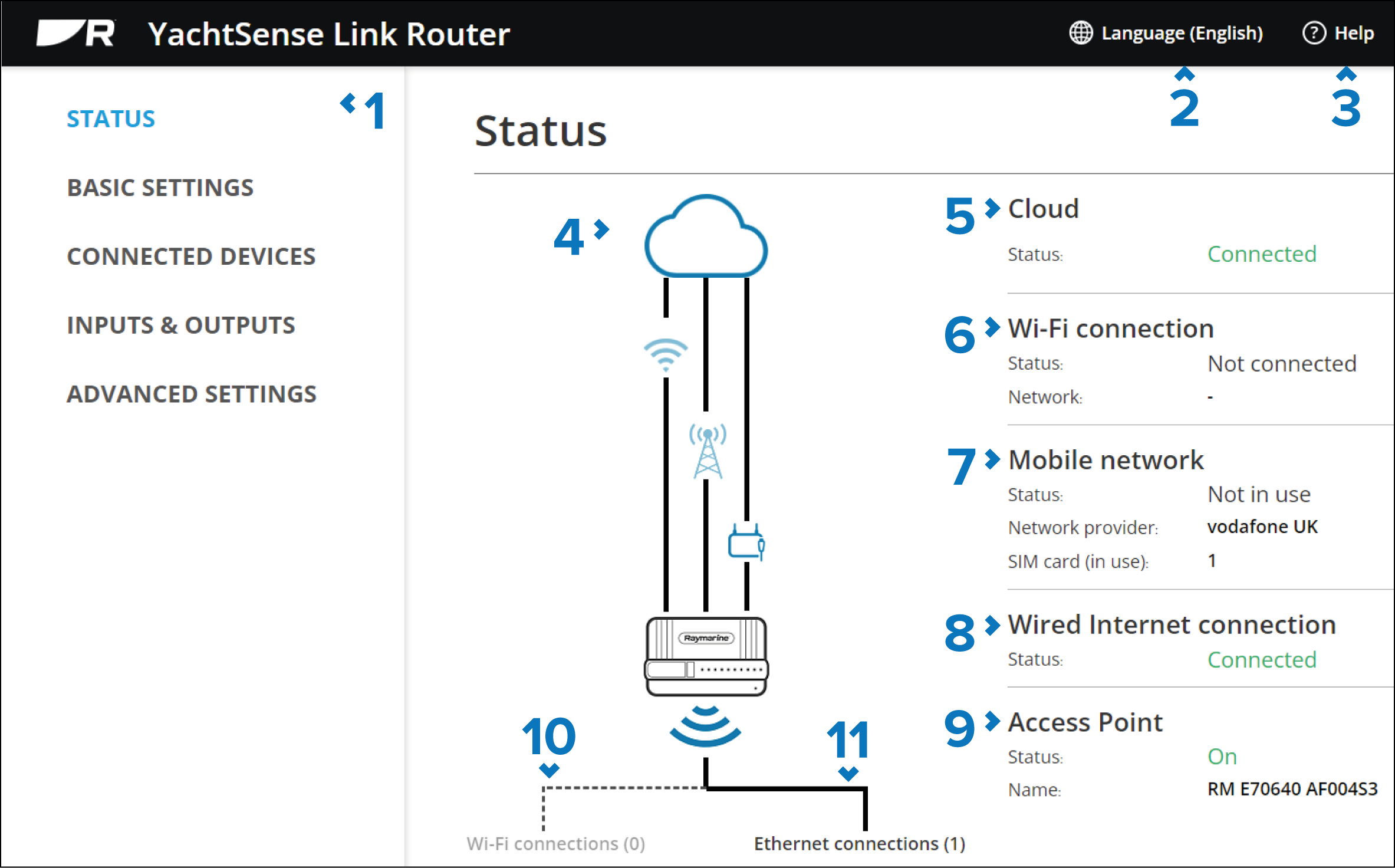

Status pageThe status page provides the following details and settings:

1. Links to Router’s settings pages.

2. Language selection.

3. Help — Access the embedded help.

4. Visualization of connections.

5. CloudStatusThe Cloud section identifies the router’s cloud connection status.

6. Wi-Fi connectionStatusThe Wi-Fi connection section identifies the router’s external DOCK WLAN Wi-Fi connection status, name (SSID), and signal strength (e.g.: the connection details to a marina Wi-Fi).

7. Mobile networkStatusThe Mobile network section identifies which SIM card is currently in use.

8. Wired Internet connection The Wired Internet connection section identifies the router’s Wired internet connection. (WAN) connection status.

9. Access pointStatusThe Access point section identifies the router’s internal BOAT Wi-Fi connection status, and the access point’s name (SSID).

10. Wi-Fi connections — Identifies the devices connected to the router’s Wi-Fi access point.

11. Ethernet connections — Identifies the devices connected to the router’s wired (RayNet) Ethernet connections.

Selecting the connection heading on the right side of the Status page or the icons in the Status diagram will open the relevant configuration page.
