Tools required

The following tools are required to install and connect a YachtSense DCS-Series Digital Control System to a vessel’s electrical system.

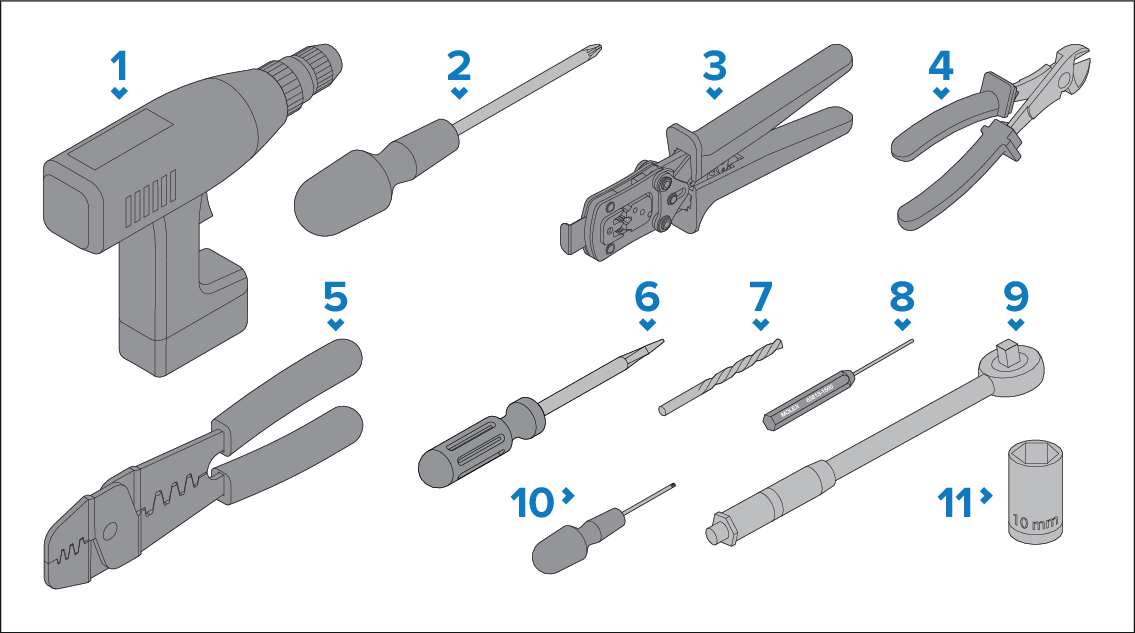

Tools required

  1. Power drill

  2. Pozi-drive screw driver

  3. Molex Crimp tool(Molex® 14–22 AWG hand crimp tool (Molex® part number: 640160133)

  4. Wire cutters / strippers

  5. Electrical crimp tool (suitable for M6 closed-barrel crimp ring terminals)

  6. Flat blade screwdriver

  7. Drill bit (suitable for fixings and mounting surface)

  8. MolexToolsMolex® 1.50 mm (0.59 in) diameter extraction tool, ( part number: 638131500)

  9. Torque wrench

  10. T15 Torx drive

  11. 10 mm socket
